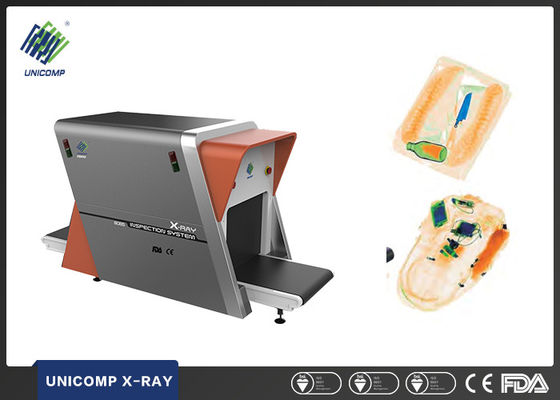

Building Stadium Venue X Ray Security Scanner With Extremely Low Radiation

Building Stadium Venue X Ray Security Scanner With Extremely Low Radiation
Building Stadium Venue X Ray Security Scanner With Extremely Low Radiation Building Stadium Venue X Ray Security Scanner With Extremely Low Radiation Building Stadium Venue X Ray Security Scanner With Extremely Low Radiation

Large Image :  Building Stadium Venue X Ray Security Scanner With Extremely Low Radiation

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: UNX8065
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Tunnel Size: 800mm(W)×650mm(H) Weight: 1100kg
Anode Voltage: 140Kv-160kV (Adjustable) Dimension: 3070mm(L)×1170mm(W)×1510mm(H)
Resolution: 40AWG ( φ= 0.0787 Mm Metal Wire ) Inspection Speed: 0.22m/s
High Light:

x ray scanning machine

,

security x ray machine

Building Stadium Venue Security X-Ray Baggage Scanner UNX8065





The UNX Series X-ray security detection machine release is a dynamic project associated with our Unicomp Technology Research and Development Manufacturing Division. Our full range of security machines are designed to address multiple safety requirements including internal detection of luggage, backpacks and express courier packages. The UNX Series machines are also effective for port logistics transportation, civil aviation, customs control, conference centers, hotels, large cultural and sports activities, plus express logistics. All of our machine platforms include state of the art industrial designs, high tech appearance and the most advanced Cloud traceability software in the industry.



Emission: Extremely low radiation dose adhering to all International Safety Standards.


Environment: New advanced lead curtain pressure membrane technology effectively eliminating secondary lead (Pb) pollution.


Power: Penetration equivalence of up to a 34mm steel plate.


Operation: Intuitive operator interface and media interface for quick learning and optimization of the machine.


Software/Imaging: Robust software platform with intuitive control interface. Clean and crisp image presentation meeting all International Standards.


Traceability: Cutting edge Cloud traceability functions from initial product scan to final customer acceptance ensuring full safety throughout the process.


Support: A full suite of customer support including; remote technical support, direct access to the Cloud, and real time monitoring of machine technical functions/operation.





System Parameters

Dimensions

3070mm(L)×1170mm(W)×1510mm(H)

Tunnel Size

800mm(W)×650mm(H)

Weight

1100kg

Conveyor Height

330±30mm

Inspection Speed

0.22m/s

Max.Load Weight

150Kg(Even distribution)

Resolution

40AWG ( φ= 0.0787 mm metal wire )

Penetration

36mm (Typical), 32mm (Standard)

Radiation Safety

Meets film safety ISO 1600

X-ray Dose Rate

<0.21μGy/h (5cm away from the housing)

X-ray Generator

Anode Voltage

140Kv-160kV( Adjustable)

Cooling Cycle

Oil Cooling 100%

Single Inspection Dose

<2.4μGy

Imaging System

X-ray Detector

Photodiode

Gray Level

4096

Monitor

19’’

Image Processing System

Image Enhancement

*Black and white *Inverse *High-energy penetration *Low-energy penetration *Super-enhancement *Elimination of organic or inorganic substances *Variable absorption rate

*Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )

Recognition

Orange for organic matter, blue for inorganic, green for metal and compound

Image Playback

50 inspected images could be replayed

Storage Capacity

No less than 100 thousand pieces of image

Additional Features

Standard Functions

*Date/time display *Baggage counter *User management *System operation clock *X-ray on clock *POST *Image storage & retrieval *Diagnosis & maintenance *Dual-scan *Image recognition trainging *Cloud data storage and analysis

Optional Functions

*High density area alarm *Explosives and drugs auxiliary examination *Dangerous goods image insertion

Installation Requirements

Operation/Storage Temperature

0~40℃,-5~50℃

Humidity

10%~90%(No condensation)

Power Supply

220VAC±5% 50Hz/60Hz







Inspection Images:


Building Stadium Venue X Ray Security Scanner With Extremely Low Radiation 0

UNX8065.pdf
