| Dimension（WxDxH,mm): | 1600x790x1800 | Max.Loading Weight: | 10kg |
|---|---|---|---|
| Work Environment: | Temperature -5-40°C , Humidity 10-90% (No Condensation) | Operation: | 1-2person (Can Be Fully Automated With Automatic Line Docking) |
| Applications: | Bulk, Metal (or Non-metal) Packaging And Canning | Inspection Accuracy（mm）: | Stainless Steel Ball ø0.5，Stainless Steel Wire 0.2x1.5, Glass2.0，Plastic 1.5 |
| High Light: | x ray food inspection systems,food x ray inspection equipment |
||

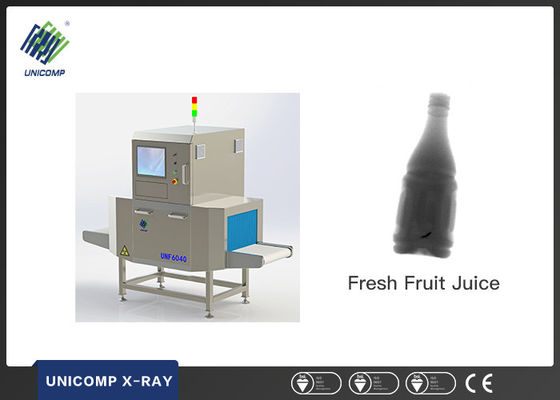

Unicomp Efficient X-ray inspection systems are available for systematic detection and elimination of foreign material
Unicomp Efficient X-ray inspection systems are available for systematic detection and elimination of foreign material. They help food makers safeguard consumer health, mitigate the risk for extensive recall campaigns, and make sure that the reputation of their brands and compliance with applicable regulations remain intact.
Features:
Excellent operability:
Automatically save product images, convenient for later analysis.
Adapt to multiple product inspection:
Pallets, bags, boxes, bottles, cans, loose products etc.
High specification hardware configuration:
The components of the equipment are imported brands to ensure the performance and service life of the whole machine.
Easy to disassemble and clean:
Easier integration of existing production lines and conveyor belts, easier removal, cleaning and maintenance.
Good environmental adaptability:
Product channel protection grade reaches IP66, the whole structure is completely sealed, waterproof and dustproof.
| Model | UNF6040 |
| Max Voltage | 40-120kV |
| Max Current | 0.2-7.5mA |
| Inspection Speed (m/min) | 10-50 |
| Inspection Accuracy(mm) | Stainless steel ball ø0.5,Stainless steel wire 0.2x1.5, Glass2.0,Plastic 1.5 |
| Image system | Linear detector array |
| Belt | Food grade belt, length can be customized |
| Tunnel Size(mm) | 600x400 |
| Max.Loading Weight | 10kg |
| Monitor | 19'' |
| Dimension(WxDxH,mm) | 1600x790x1800 |
| Weight | 500kg |
| Safety | <1μSv/h (5cm away from the housing) |
| Operation | 1-2person (Can be fully automated with automatic line docking) |
| Equipment material | 304Stainless steel |
| Software | Unicomp Software |
| Applications | Bulk, metal (or non-metal) packaging and canning |
| Radiation Safety Statement :All the equipments produced by Unicomp Technology meet the relevant requirements of the national standard GB18871-2002, which is better than the industry average. | |
| Work environment : Temperature -5-40°C , Humidity 10-90% (No condensation) | |
1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Wuxi , Shenzhen ,Chongqing, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation .
2.How about the packing for product? Is it easy damaged during transportation?
For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case.
3.How about your after-sales policy?
Customer first is our always principle. All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
