2.5KVA X Ray Inspection Equipment Unicomp NDT X Ray Flaw Detector

2.5KVA X Ray Inspection Equipment Unicomp NDT X Ray Flaw Detector
2.5KVA X Ray Inspection Equipment Unicomp NDT X Ray Flaw Detector

Large Image :  2.5KVA X Ray Inspection Equipment Unicomp NDT X Ray Flaw Detector

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: CE
Model Number: XXG-2505
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: On request
Packaging Details: Plywood
Delivery Time: 5-15 days after order confirmation
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Output Voltage: 150～250kV Focus Size: 1.0×2.2mm
Maximum Penetrating Power: 35mm（A3 Steel） Power: 2.5KVA
High Light:

2.5KVA X Ray Inspection Equipment

,

CSP FPD X Ray Inspection Equipment

,

Unicomp NDT X Ray Flaw Detector

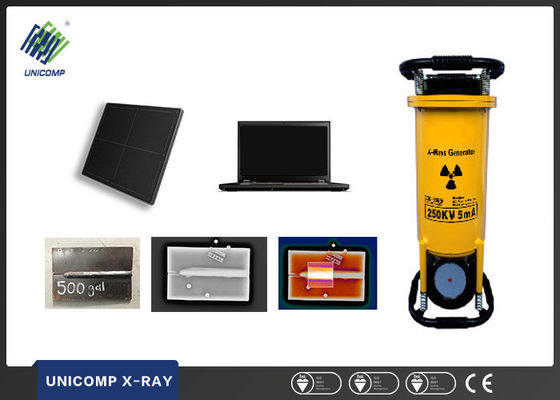

Unicomp Portable NDT X-Ray Flaw Detector, X Ray Inspection for Welding / Foundry Quality Checking

Except 250kV Panoramic X-Ray, Unicomp also supply 160kV, 200kV, 300kV, 350kV portable directional / panoramic X-Rays.

Specifications:

Output voltage: 150～250kV
Tube current: 2~5mA
Focus Size: 1.0×2.2mm
Radiation angle: 360°*25°
Photographic density: D＞1.5
Maximum penetrating power : 35mm(A3 Steel)
Generator Dimension: 220mm*740 mm
Controller Dimension: 370mm*300mm*150 mm
Power: 2.5KVA
Generator Weight: 28Kg
Controller Weight: 9kg
Sensitivity: ＞1.5％
Cooling: forced air cooling



Features:

  • Sensitivity:＞1.5％
  • Photographic density:D＞1.5
  • Maximum penetrating power :30mm(A3 Steel)
  • Small volume
  • Forced air cooling
  • Light-weight
  • Portable and convenient
  • Work and rest with 1:1 time ratio
  • Reasonably structured
  • Delayed exposure to keep safe

Application:

  • Spaceflight industry
  • Automobiles
  • Bridge building industry
  • Pressure container
  • Shipbuilding industry
  • Metallurgy industry
  • Chemical industry Power supply
  • Heavy machine manufacture industry
  • Parts processing and Welding quality and internal defects
  • All kinds of light metal, rubber, ceramics processing quality

Packing List :

  1. X-Ray Generator: 1SET (Including X-ray tube, Generator, Cooling System, Temperature Control)
  2. Controller:1PCS
  3. Ground Lead wire :1PCS /5M
  4. Connection Cable YR 3*2.5+6*1: 1PCS /25M
  5. Power Cable YR3*2.5: 1PCS /10M
  6. Fuse 20A 6*30: 5 units
  7. Manual: 1PCS
  8. Certification: 1PCS
  9. Product Test Report: 1PCS
  10. Packing List File: 1PCS
