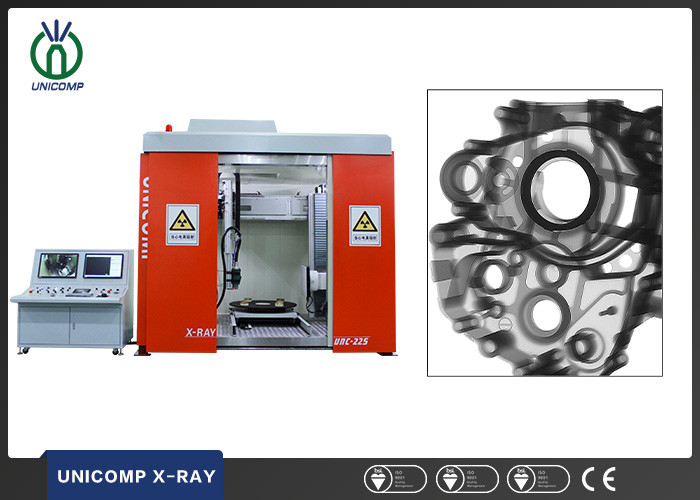

5 Axis 2D Industrial X Ray Machine UNC225 Radiography System For NDT

5 Axis 2D Industrial X Ray Machine UNC225 Radiography System For NDT
5 Axis 2D Industrial X Ray Machine UNC225 Radiography System For NDT

Large Image :  5 Axis 2D Industrial X Ray Machine UNC225 Radiography System For NDT

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: UNC225
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Can Negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Maximum Penetration(FE): 150mm/25mm Tube Voltage: 225kV
Focal Size: 1.0mm/3.0mm Size: 2230mm*1582mm*2478mm(L*W*H)
Detection Range: Φ500*800mm Weight: 5T
Power Consumption: 8KW
High Light:

Axis 2D Industrial X Ray Machine

,

Radiography System Industrial X Ray Machine

,

NDT X Ray Inspection Equipment

Cast Parts Industrial X Ray Machine Real Time Imaging Inspection UNC225



UNC225 is a robust, reliable industrial X-ray inspection system for broad applications in foundries, R&D, laboratories, universities, and educational institutions. The system delivers brilliant image quality with digital flat-panel detector and highly dynamic radioscopy.



  • Smart ergonomics for easy operation
  • Tailor-made configuration for wheels and tires
  • Renowned, robust, reliable digital X-ray inspection system
  • Brilliant image quality with high contrast for spot-check samples and series inspection

Inspection Images:



5 Axis 2D Industrial X Ray Machine UNC225 Radiography System For NDT 0



UNC225 assists you in detection of casting flaws in items such as:



1. Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)

2. Turbine blades

3. Wheels and tires

4. Fiber-reinforced materials

5. Ceramics

6. 3D printed materials

Technical Data

Attribute Respective Value
Maximum penetration(FE) 150mm/25mm
Equipment weight 5T
System Dimension 2230mm*1582mm*2478mm(L*W*H)
X-ray Tube 225KV
Power 640W/1600W
Pixel Pitch 139μm
Focal size 1.0mm/3.0mm
Image Area 250mm x 300mm
