Inventory Counting X Ray Chip Counter Flip Chip For Electronics Components

Inventory Counting X Ray Chip Counter Flip Chip For Electronics Components
Inventory Counting X Ray Chip Counter Flip Chip For Electronics Components

Large Image :  Inventory Counting X Ray Chip Counter Flip Chip For Electronics Components

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: CX7000L
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Dimension: 1000 Mm*1370 Mm*1962mm Application: Electronics, LED , Flip Chip , Semiconductor
Tunnel Size: 440mm Max.Current: 700 μA
Maximum Inspection Speed: 7”~17” Tape & Real Is Less Than 12s/Real, 7”*4 Is Less Than 13s. Detected Project Size: 30-450 Thickness Les S Than 50mm
High Light:

Inventory Counting X Ray Chip Counter

,

Electronics Components X Ray Chip Counter

,

Flip Chip Electronic Parts Counter

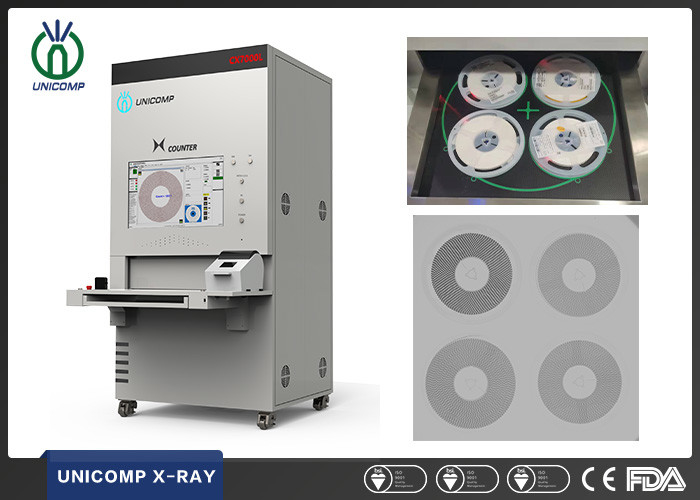

High precision SMD X-Ray chip counter Unicomp CX7000L for electronics components inventory counting





Features



● Automatic inspection, no need on programs switch for different components

● Fast speed and high accurate chip counting, reducing labor costs

● No chip damage or lost with non-destructive counting

● Compatible with 7”~17” tape & reels

● Automatic link with ERP & MES System, and storage system

● Shielded cabinet protection to guarantee Safety leakage of X-ray

● Fast counting Speed:12~13s/Reel

● Inspection Accuracy: ≥99.9%

● Min. Package: 01005

● One-button operation, automatic counting

● Hand-operated label reading, new label printing and sticking

● Special advantage for incoming inspection and inventory management

● Real-time radiation leakage monitoring





Main Configuration



1. Bar-code Scanner

2. X-ray System

3. Label Printer

4. Finger Printer Recognition System



Equipment Features Footprint (W*D*H) / Machine Weight 1000 mm*1370 mm*1962 mm / 1160 kg
Package Plywood Case, 110 cm*145 cm*210 cm, Total 1450 kg
Power Consumption 1.1 kW
Power Supply AC 110~220V (±10%) 50Hz
Working Mode Off-line
System Computer Operating System Industrial PC, Windows OS , i7 CPU
Monitor 22” LCD
X-Ray Tube Max. Voltage 80 kV
Max. Current 700 μA
Focal Spot Size 0.03 mm
Detector FPD Detector Pixel Size 139 μm
Effective Detection Area 430*430 mm
Pixel Matrix 3072*3072
  Frame Rates / AD Bits 14 fps / 16 Bits
Detection Parameters Inspection Tape & Real Size 7”~17”
Scan height ≤88mm
Maximum Inspection Speed 7”~17” Tape & Real is less than 12s/Real, 7”*4 is less than 13s.
Inspection Min. Component 01005
Inspection Accuracy ≥99.9%
Detectable item Capacitors, resistors, inductors, beads, crystals, transistors, diodes, FETs, various types of resistors, bile capacitors, detectable connectors, integrated circuit chips, etc.
Accessories Barcode Scanning, Printer, Fingerprint Recognition System



Inventory Counting X Ray Chip Counter Flip Chip For Electronics Components 0



Inventory Counting X Ray Chip Counter Flip Chip For Electronics Components 1





Inventory Counting X Ray Chip Counter Flip Chip For Electronics Components 2



X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards,



¢ Specifications are subject to change without notice, all trademarks are the property of the system maker.
