CE Approved Micro Focus X Ray Equipment , NDT Industrial X-Ray Inspection Solutions
Product Details
x ray imaging system
,digital x ray machine
Micro-focus NDT Industrial X-ray inspection solutions in Indonesia Jordan

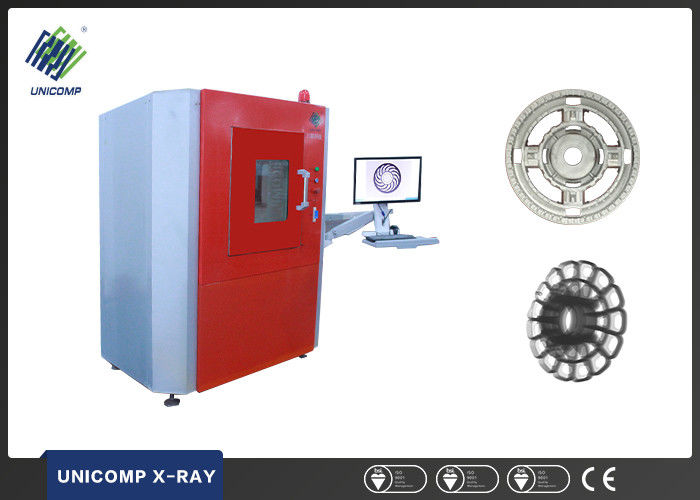

X-Ray shielded cabinet complies with the strictest international regulations for fully shielded radiation devices. The cabinet is completely self-contained. Manufactured in steel with complete lead shielding.
Equipped with X-Ray sources from 160kV or Micro – focus sources up to 150kV .
Equipped with Digital Flat Panel Detector (different sizes and resolution available).
Cabinet designed with a double sliding door for casting loading with a lead/glass inspection window.
Loading door equipped with safety light curtains.
High speed door movements controlled by inverter.
Electronic safety circuits controlled by multifunction controller
Blinking X-ray on warning lights interlaced with light fail circuit.
1. Accurate, fast, and repeatable inspection - manually and automatically
2. High power, high resolution inspection of very small features
3. Easy to use, dynamic image enhancing filters
4. Highest image quality for reliable inspection decisions
5. Economic solution for small batch sizes and sample tests
Technical Data
| Attribute | Respective Value |
| Sample Dimensions | Outer width: 250 [mm] max. Outer diameter: 550 [mm] max. |
| Maximum Sample Weight | 15 [kg] |
| System Dimension | 1480mm*1106mm*2038mm(L*W*H) |
| X-ray Tube | 160 [kV] |
| Detector Active Area | 250*550mm |
| Pixel Pitch | 139 [m] |
| Maximum penetration(AL) | 100mm/20mm |
| Detector Resolution | 3.1LP/mm |
-
