Unicomp microfocus 2.5D X-ray inspection machine AX7900 with oblique view for Wire harness & cables cracks inspection
Product Details
airport security x ray machine
,security x ray machine

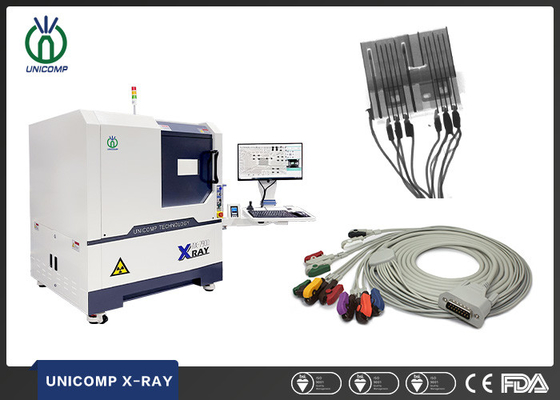

Unicomp microfocus 2.5D X-ray inspection machine AX7900 with oblique view for Wire harness & cables cracks inspection
Description:
90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 600mm x 520mm , max. detection area 505 x 440mm, with ~52X Geometric Magnification.
FEATURES:
90KV 5μm X-ray tube, FPD Detector.
Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).
Multi-function DXI image processing system.
X/Y programming function for multiple image inspection routines
Max. loading area 600mm x 520mm , max. detection area 505 x 440mm, with ~52X Geometric Magnification.
BGA void/area auto-measurement plus report generation.
APPLICATION:
LED, SMT, BGA, CSP, Flip Chip Inspection.
Semiconductor, Packaging components, Battery Industry.
Electronic components, Auto parts, Photovoltaic Industry.
Aluminum Die Casting, Moulding Plastic.
Ceramics, Other Special Industries
| Item | Definition | Specs |
| System Parameters | Size | 1215(L)x1325(W)x1700(H)mm |
| Weight | 1240kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.8kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 90kV | |
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 24 ‘’LCD | |
| Gemeotric Magnification | 52X | |
| Detection Region | Max.Loading Size | 600mm x 520mm |
| Max.Inspection Area | 505mm x 440mm | |
| X-ray Leakage | <1μSv/h | |
