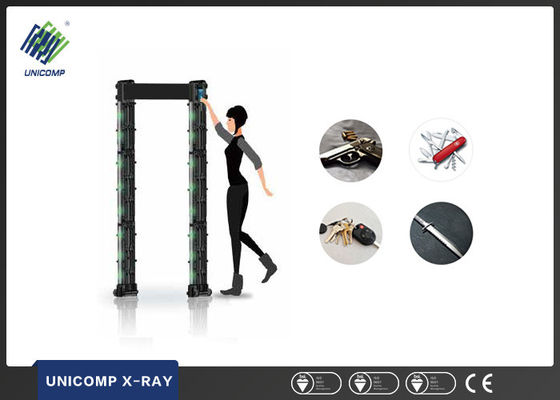

Sound Alarm Portable Walk Through X Ray Security Scanner for Metal Detector

Sound Alarm Portable Walk Through Metal Detector Multi-zone technology Metal Detector

Features and Functions

● Adjustable sensitivity of each detection zone

● Multi-alarm sounds to choose

● Operating frequency can be adjusted manually or automatically

● Move after folded or installation(two move methods to choose)

● Detection technology: Even detection technology, no blind spot

● Internet technology: Remote upgrade system and remote control system

● Working band: 120 working bands

● Sensitivity of each detection zone:355 level

● Statistics: Record the pass and alarm numbers

● Query function: The system has real-time information query function

● Intelligent Standby: The system has intelligent standby operation alerts

● Detection speed: more than 60 people pass and detect in 1 minute

Technical Parameters

● Detection objects: knives, guns, coins           ● External Dimension:2250x850x500mm

● Passage Dimension: 2051x710x500mm       ● Fold Dimension:889x606x484mm

● Packing Dimension: 948x666x525mm          ● Humidity: 99%, non-condensing

● Working environment: -40 ℃~85 ℃              ● Weight: NW 42KG, GW 50KG

● Input : AC 110V~240V/50Hz~60Hz               ● Output : DC 12V/5A 12W

● Power supply: the whole system is equipped with polymer battery, life time 8,16,24,48,72

hours optional.

Packing

Fold Dimension :889x606x484mm

Packing Dimension:985x700x570mm

Volume:0.33m3

NW:44KG

GW:52KG

Optional functions

In order to meet different customers requirements the device can be equipped with some optional functionality, for instance a body temperature detector, video intercom, internal CCTV and recording, face recognition etc. Additional features on request.
