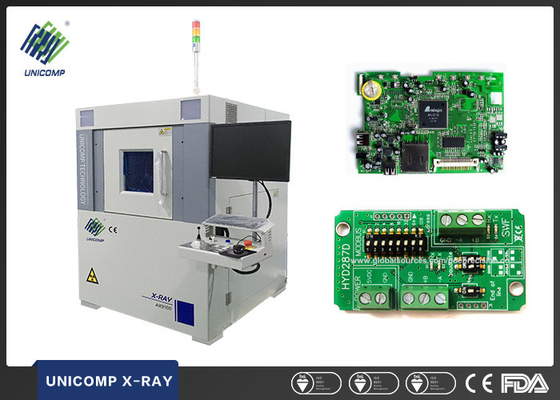

BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function

BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function
BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function

Large Image :  BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: CE, FCC
Model Number: AX9100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Polywood case package data:166cm*156cm*195cm total weight:1900KG
Delivery Time: 45 days
Payment Terms: T/T
Detailed Product Description
Function: PCBA,BGA Inspection Equipment: Quality Check
High Light:

electronics x ray system

,

x ray equipment

  • Application
  • Ceramics, other special industries.
  • Aluminium Die-casting, Moulding Plastic.
  • SMT, BGA, CSP, Flip Chip, LED Detection,
  • Electronic components, Automotive parts, Photo-voltaic,
  • Semiconductor, Packaging components, Battery Industry,

      BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function 0 BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function 1“BGA”的图片搜索结果






  • Features
  • Multi-function DXI image processing system, CNC programmable detection
  • Max. loading area φ570mm, max. inspection area 450mm*450mm, with 1600X Magnification
  • X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
  • 130kV (Option 110KV) 7µm closed X-ray tube, high speed & Millions pixels high resolution FPD
  • Tilt detection with 55° and rotation 360°operation together with 6 axis movement

   BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function 3




  •  X-ray Images

      BGA Inspection X Ray Equipment 22" LCD With CNC Programmable Detection Function 4




  • Technical Specifications





Item Description Specifications
X-Ray Tube Max. Voltages, Type 130kV (Option 110KV), Closed
Power Consumption 40W(25W)
Focal Spot Size 7 μm
Magnification 1600X
Detector Detector Type FPD
Resolution 101 LP/cm
Effective Area 116.4mm ×145.7mm
System Computer Operating System Industrial PC, Win 7, i7 Processor
Monitor 22” LCD
Software User Interface Unicomp Multi-function DXI image processing system
Working Platform Max. Loading Area φ570mm
Max. Inspection Area 450mm×450mm
Max. Loading Weight 10kg
Movement Control Joysticks, Mouse and Keypads
Motion Range (Up and Down) 200mm
Table Tilting Angle 55° Tilting and 360° Rotation
Navigation Camera HD Camera, Laser point
Axis Manipulator 6-axis with X1/ X2 / Y / Z / T(55°) / R(360°)
Equipment Features Power Supply AC 110~220V (±10%) 50Hz, 2.0kW
Outline Dimensions 1450(W)×1500(D)×1850(H)mm
System Weight 1900 kg
Optional Accessories None
Warranty

One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure



X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards,



Specifications are subject to change without notice, all trademarks are the property of the system maker

Contact Details
Unicomp Technology

Contact Person: Mr. James Lee

Tel: +86-13502802495

Fax: +86-755-2665-0296

Send your inquiry directly to us (0 / 3000)
