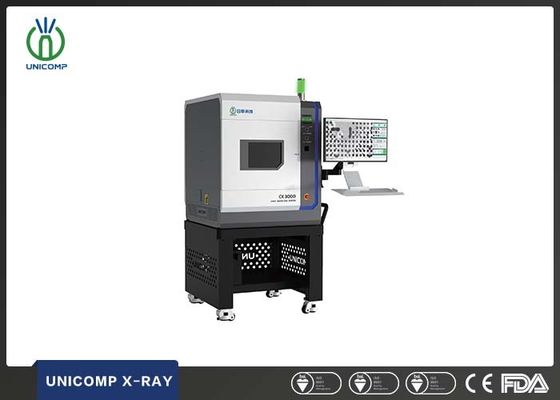

Desktop BGA Voids 90kV Electronics X Ray Machine 24" HD
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
CX3000
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T,L/C
Supply Ability:
30 sets per month
Product Summary
Technical Specifications Item Description Specifications X-Ray Tube Max. Voltages, Type 90kV, Closed Focal Spot Size 5 μm Magnification 200X Detector Detector Type FPD Effective Area 58mm×54mm System Computer Operating System Industrial PC, Win 11, i7 Processor Monitor 24" LCD Software User ...
Product Details
Highlight:
8W Electronics X Ray Machine
,90kV Electronics X Ray Machine
,22" LCD X Ray Machine
Name:
Electronics X Ray Machine
Application:
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
X-Ray Leakage:
< 1uSv/h
Weight:
720kg
Power Consumption:
0.7kW
Max. Voltages, Type:
90kV, Closed
Monitor 24” LCD Software User Interface:
Unicomp Multi-function DXI Image Processing System
Product Description
Technical Specifications
| Item | Description | Specifications |
| X-Ray Tube | Max. Voltages, Type | 90kV, Closed |
| Focal Spot Size | 5 μm | |
| Magnification | 200X | |
| Detector | Detector Type | FPD |
| Effective Area |
58mm×54mm |
|
| System Computer | Operating System | Industrial PC, Win 11, i7 Processor |
| Monitor | 24" LCD | |
| Software | User Interface | Unicomp Multi-function DXI image processing system |
| Working Platform | Max. Loading Area | 350mm×375mm |
| Max. Inspection Area | 330mm×350mm | |
| Movement Control | Joysticks, Mouse and Keypads | |
| Rotation | Option 360° tilt fixture | |
| Navigation | Camera | HD Camera, Laser point |
| Axis | Manipulator | 3-axis with X / Y / Z |
| Equipment Features | Power Supply | AC 220V (±10%) 50Hz, 0.7kW |
| Outline Dimensions | 810(L)×1000(W)×1570(H)mm | |
| System Weight | 720 kg | |
| Warranty | One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure | |
| Optional Accessories | Rotation Jig | |
Application
- SMT, BGA, CSP, Flip Chip, LED Detection,
- Semiconductor, Packaging components, Battery Industry,
- Electronic components, Automotive parts, Photo-voltaic,
- Aluminium Die-casting, Moulding Plastic, Ceramics, other special industries.
Features
- 90kV 5µm closed X-ray tube
- Navigation in windows, target tracking conveniently
- High resolution FPD with 3-axis motion system, meet basic inspection demands
- Max. loading area 235mm×205mm mm, max. inspection area 165mm×190mm, with 200X Magnification
X-ray Images
X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards,
¢ Specifications are subject to change without notice, all trademarks are the property of the system maker
