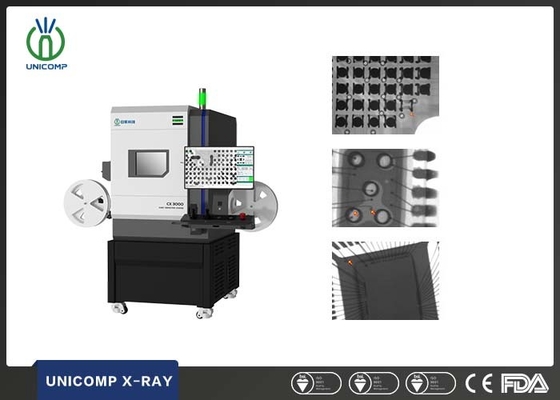

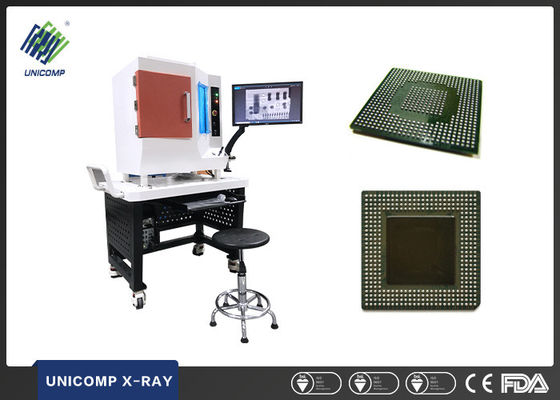

Product Details:
Payment & Shipping Terms:
|
| Name: | Electronics X Ray Machine | Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor |
|---|---|---|---|
| X-ray Coverage: | 48mm X 54mm | X-ray Leakage: | < 1uSv/h |
| Weight: | 300kg | Power Consumption: | 0.5kW |
| Highlight: | 0.5kW X Ray Inspection Machine,90kV X Ray Inspection Machine,1uSv/H PCBA Inspection Machine |
||
Technical Specifications
| Item | Description | Specifications |
| X-Ray Tube | Max. Voltages, Type | 90kV, Closed |
| Power Consumption | 8W | |
| Focal Spot Size | 5 μm | |
| Magnification | 200X | |
| Detector | Detector Type | FPD |
| Resolution | 101 LP/cm | |
| Effective Area | 58mm×54mm | |
| System Computer | Operating System | Industrial PC, Win 7, i7 Processor |
| Monitor | 22” LCD | |
| Software | User Interface | Unicomp Multi-function DXI image processing system |
| Working Platform | Max. Loading Area | 235mm×205mm |
| Max. Inspection Area | 190mm×165mm | |
| Max. Loading Weight | 5kg | |
| Movement Control | Joysticks, Mouse and Keypads | |
| Rotation | Option 360° tilt fixture | |
| Navigation | Camera | HD Camera, Laser point |
| Axis | Manipulator | 3-axis with X / Y / Z |
| Equipment Features | Power Supply | AC 110~220V (±10%) 50Hz, 1kW |
| Outline Dimensions | 750(L)×570(W)×890(H)mm | |
| System Weight | 300 kg | |
| Warranty | One year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure | |
| Optional Accessories | Rotation Jig |
|
Application
Features
X-ray Images
X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards.
