| Name: | X-ray Inspection Machine | Application: | SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor |
|---|---|---|---|
| Tube Voltage: | 130KV | Industry: | Electronics Industry |
| Size: | 1350(L)x1250(W)x1700(H)mm | X-ray Leakage: | < 1uSv/h |
| Weight: | 1900kg | Power Consumption: | 1.6kW |
| High Light: | Offline Programming Unicomp X Ray,Connector Unicomp X Ray,1.6kW X Ray Inspection Machine |
||

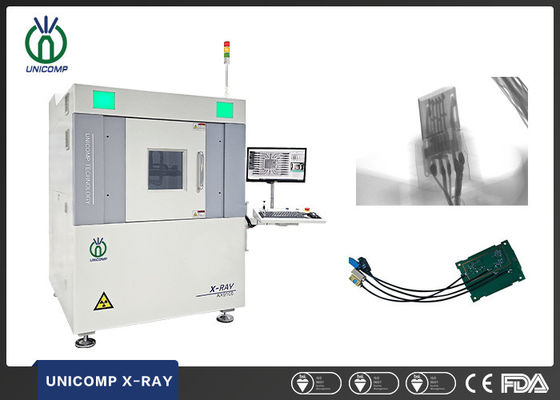

CE/FDA Certificated Unicomp AX9100 X-Ray Inspection Machine For Computer Mother Board Chipset BGA Soldering Void Qual
Features:
● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.
● One-button operation with 2.5D image display.
● Offline programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.
Applications:
● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.
| System Summary | |
| Footprint | 1420(W)×1580(D)×2000(H)mm |
| Machine Weight | 2640 kg |
| Power Supply | AC 110~220V, 50/60Hz |
| Plywood Packing Size | 165(W)×180(D)×225(H)cm |
| Packing Weight | 2800 kg |
| Power Consumption | 3.0 kW |
| X-Ray Tube | |
| Tube Type | Sealed |
| Max. Power | 40W |
| Voltage | 0~130kV (Adjustable) |
| Focus Spot Size | 7μm |
| Imaging System | |
| Detector | Flat Panel Detector (FPD) |
| Pixel Size | 85μm |
| Effective Detection Area | 130*130mm |
| Frame Rates | 20fps |
| Pixel Matrix | 1536*1536 |
| System Magnification | 1600X |
| Software | |
| Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
| CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
| Navigation | Convenient Target Point Positioning System |
| Motion Control System | |
| Movement Control | Joystick, Keypad & Mouse |
| Max. Loading Area/Weight | Ф570mm / 10kg |
| Max. Inspection Area | 450*450mm |
| Oblique Views | Max. 55° Filting (FPD) / 360° Rotation (Table) |
| Manipulator | 7-axis with X1 / X2 / Y / Z1 / Z2 / T (55°) /R (360°) |
| Industrial PC | |
| Monitor | 22’’ FHD LCD Display |
| System OS | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 8GB |
| CPU model | Intel i7 Processor |
| Other Features | |
| Energy Saving | X-Ray Auto-off when it's out of work over than 5 minutes |
| Safety Operation | Electromagnetic Interlock and warning Light |
| Authority Management | Password Magnagement |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
