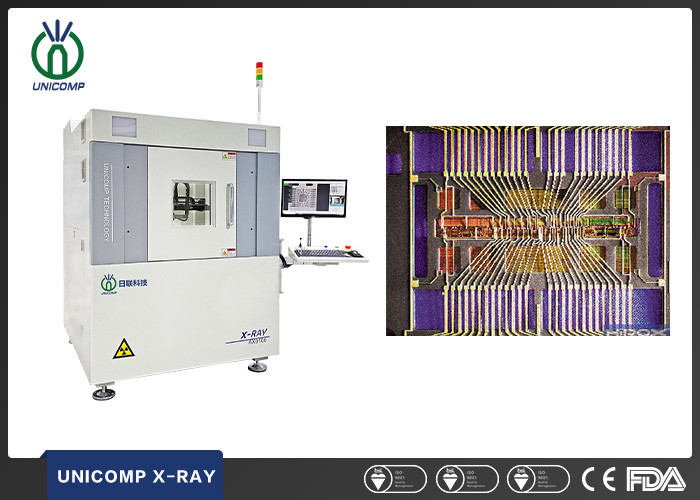

Microfocus Closed Tube Unicomp X Ray 130kV 3um For SMT BGA Soldering

Microfocus Closed Tube Unicomp X Ray 130kV 3um For SMT BGA Soldering
Microfocus Closed Tube Unicomp X Ray 130kV 3um For SMT BGA Soldering

Large Image :  Microfocus Closed Tube Unicomp X Ray 130kV 3um For SMT BGA Soldering

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX9100
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: X Ray Inspection Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 130KV Industry: Electronics Industry
Size: 1350(L)x1250(W)x1700(H)mm X-ray Leakage: < 1uSv/h
Weight: 1900kg Power Consumption: 1.6kW
High Light:

Closed Tube Unicomp X Ray

,

Microfocus Unicomp X Ray

,

X Ray Inspection Machine 130kV

CE/FDA Certificated Unicomp AX9100 X-Ray Inspection Machine For Computer Mother Board Chipset BGA Soldering Void Qual


Applications:


● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.



Features:


● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.

● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.



Item Definition Specs
System Parameters Size 1350(L)x1250(W)x1700(H)mm
Weight 1900kg
Power 220AC/50Hz
Power Consumption 1.6kW
X-ray Tube Type Closed
Max.Voltage 130kV
Max.Power 40W
Spot Size 7μm
X-ray System Intensifier FPD
Monitor 22 ‘’LCD
System Magnification 1600 X
Detection Region Max.Loading Size Φ570mm
Max.Inspection Area 450mm x 450mm
X-ray Leakage <1μSv/h





Test Images:



Microfocus Closed Tube Unicomp X Ray 130kV 3um For SMT BGA Soldering 0
