|Video Outgoing-inspection:||Provided||Marketing Type:||New Product|
|Core Components:||Contact Us||After-sales Service:||Online Support,Engineers Available To Service Machinery Overseas|
|Feature:||Non Destructive Testing||Tube Voltage:||100kv|
|Focu Size:||5μm||X-Ray Leakage:||≤1 U Sv/h|
|Tube Type:||Closed||Test Report:||Provided|

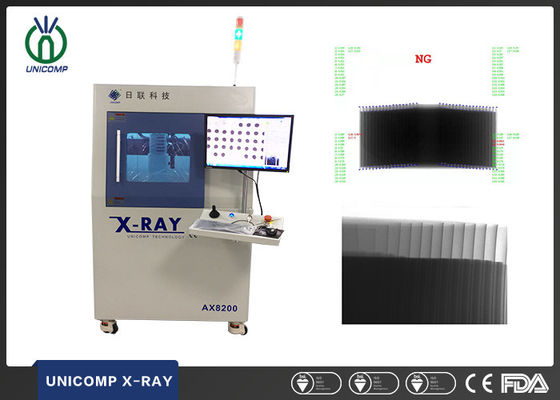

Unicomp AX8200B Electronics X Ray Machine,
22" Electronics X Ray Machine,
Polymer Lithium Battery X Ray Machine
Smt X-ray Closed 5g Chipset Electronic Connector Module Inspection Machine AX8200
BGA , CSP , LED , Flip Chip , Semiconductor,
Battery Industry , Small Metal Casting,
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry,
The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)
Other Special Industries.
|X-Ray System||Intensifier||4"Image Intensifier|
|Detection Region||Max.Loading Size||510mm x 420mm|
|Max.Inspection Area||435mm x 385mm|
● 100KV 5μm X-ray tube, image intensifier with 2 mega pixels CCD camera.
● Motion controls include: ±60° tilt motion, X/Y table motion plus Z axis tube and detector movement.
● Multi-function DXI image processing system
● X/Y programming function for multiple image inspection routines
● Max. loading area 510mm x 420mm, max. detection area 435 x 385mm with ~300X System Magnification.
● BGA void/area auto-measurement plus report generation.
