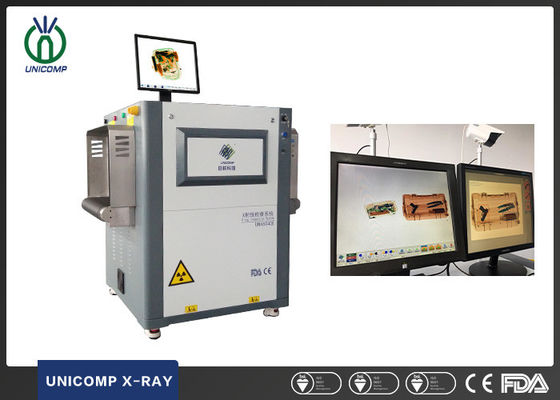

High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E

High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E
High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E

Large Image :  High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: UNX6040E
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Tunnel Size: 600mm(W)×400mm(H) Weight: 390kg
Anode Voltage: 140Kv-160kV (Adjustable) Dimension: 1300mm(L)×910mm(W)×1220mm(H)
Resolution: 40AWG ( φ= 0.0787 Mm Metal Wire ) Inspection Speed: 0.22m/s
High Light:

High Resolution X Ray Security Scanner

,

X Ray Security Scanner Unicomp

,

Baggage Screening Equipment UNX6040E

Metro Museum Expo Center Security X-Ray Scanner Machine UNX6040E





Emission: Extremely low radiation dose adhering to all International Safety Standards.


Environment: New advanced lead curtain pressure membrane technology effectively eliminating secondary lead (Pb) pollution.


Power: Penetration equivalence of up to a 34mm steel plate.


Operation: Intuitive operator interface and media interface for quick learning and optimization of the machine.


Software/Imaging: Robust software platform with intuitive control interface. Clean and crisp image presentation meeting all International Standards.


Traceability: Cutting edge Cloud traceability functions from initial product scan to final customer acceptance ensuring full safety throughout the process.


Support: A full suite of customer support including; remote technical support, direct access to the Cloud, and real time monitoring of machine technical functions/operation.









The UNX Series X-ray security detection machine release is a dynamic project associated with our Unicomp Technology Research and Development Manufacturing Division. Our full range of security machines are designed to address multiple safety requirements including internal detection of luggage, backpacks and express courier packages. The UNX Series machines are also effective for port logistics transportation, civil aviation, customs control, conference centers, hotels, large cultural and sports activities, plus express logistics. All of our machine platforms include state of the art industrial designs, high tech appearance and the most advanced Cloud traceability software in the industry.





System Parameters Dimensions 1260mm(L)×910mm(W)×1240mm(H)
Tunnel Size 600mm(W)×400mm(H)
Weight 390kg
Conveyor Height 610±10mm
Inspection Speed 0.22m/s
Max.Load Weight 100Kg(Even distribution)
Resolution 40AWG ( φ= 0.0787 mm metal wire )
Penetration 36mm (Typical), 34mm (Standard)
Radiation Safety Meets film safety ISO1600
X-ray Dose Rate <0.42μGy/h (5cm away from the housing)
X-ray Generator Anode Voltage 140Kv-160kV( Adjustable)
Cooling Cycle Oil Cooling 100%
Single Inspection Dose <1.2μGy
Imaging System X-ray Detector Photodiode
Gray Level 4096
Monitor 17’’
Image Processing System Image Enhancement

*Black and white *Inverse *High-energy penetration *Low-energy penetration *Super-enhancement *Elimination of organic or inorganic substances *Variable absorption rate

*Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )

Recognition Orange for organic matter, blue for inorganic, green for metal and compound
Image Playback 50 inspected images could be replayed
Storage Capacity No less than 100 thousand pieces of image
Additional Features Standard Functions *Date/time display *Baggage counter *User management *System operation clock *X-ray on clock *POST *Image storage & retrieval *Diagnosis & maintenance *Dual-scan *Image recognition trainging *Cloud data storage and analysis
Optional Functions *High density area alarm *Explosives and drugs auxiliary examination *Dangerous goods image insertion
Installation Requirements Operation/Storage Temperature 0~40℃,-5~50℃
Humidity 10%~90%(No condensation)
Power Supply 220VAC±5% 50Hz/60Hz /1KW





Inspection Images:


High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E 0

UNX6040E.pdf
