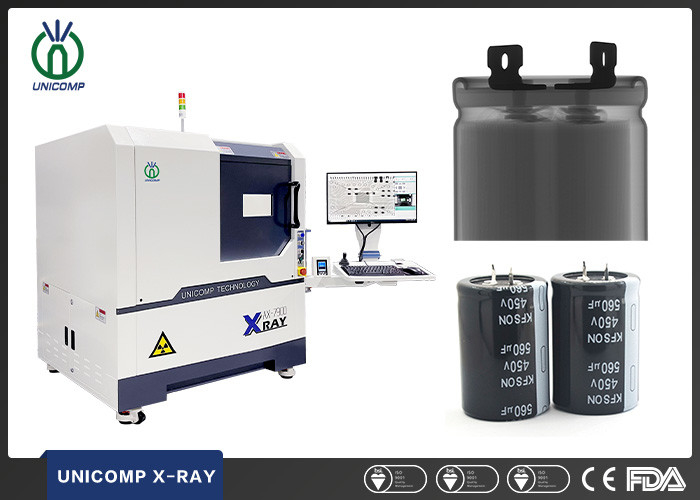

Clsoe Tube 90KV UNICOMP X Ray Machine For Capacitor Defects Inspection

Clsoe Tube 90KV UNICOMP X Ray Machine For Capacitor Defects Inspection
Clsoe Tube 90KV UNICOMP X Ray Machine For Capacitor Defects Inspection

Large Image :  Clsoe Tube 90KV UNICOMP X Ray Machine For Capacitor Defects Inspection

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX7900
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Name: Unicomp X-ray Inspection Machine Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 80KV/90KV Industry: Electronics Industry
Size: 1100(L)x1100(W)x1500(H)mm X-ray Leakage: < 1uSv/h
Weight: 1000kg Power Consumption: 0.8KW
High Light:

Clsoe Tube UNICOMP X Ray Machine

,

Capacitor UNICOMP X Ray Machine

,

Electronics X ray machine 90KV

Chinese Manufacturer clsoe tube 90KV X-ray machine for Capacitor Defects Inspection





FEATURES of AX7900:



90KV 5μm X-ray tube, FPD Detector.


Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).


Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).


Multi-function DXI image processing system.



X/Y programming function for multiple image inspection routines


Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.


BGA void/area auto-measurement plus report generation.




APPLICATION of AX7900:


LED, SMT, BGA, CSP, Flip Chip Inspection.


Semiconductor, Packaging components, Battery Industry.


Electronic components, Auto parts, Photovoltaic Industry.


Aluminum Die Casting, Moulding Plastic.


Ceramics, Other Special Industries





Description of AX7900:



90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.



Item Definition Specs
System Parameters Size 1100(L)x1100(W)x1500(H)mm
Weight 1000kg
Power 220AC/50Hz
Power Consumption 0.8kW
X-ray Tube Type Closed
Max.Voltage 80kV/90kV
Max.Power 12W/8W
Spot Size 5μm/15μm
X-ray System Intensifier FPD
Monitor 22 ‘’LCD
System Magnification 160 X/360X
Detection Region Max.Loading Size 440mm x 400mm
Max.Inspection Area 420mm x 380mm
X-ray Leakage <1μSv/h





Inspection Images:


Clsoe Tube 90KV UNICOMP X Ray Machine For Capacitor Defects Inspection 0
