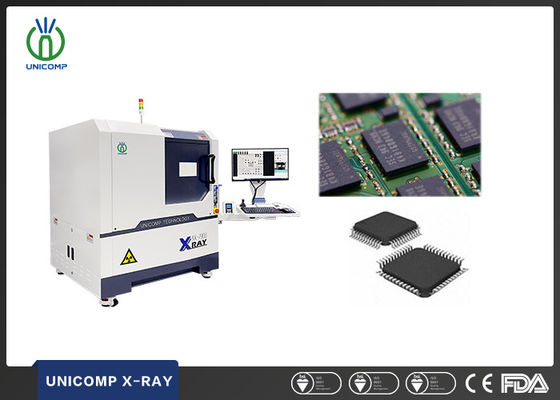

80KV/90KV Electronics X Ray Machine Precise Location Laser Locator For Chip Inner Defects Inspection

80KV/90KV Electronics X Ray Machine Precise Location Laser Locator For Chip Inner Defects Inspection
80KV/90KV Electronics X Ray Machine Precise Location Laser Locator For Chip Inner Defects Inspection

Large Image :  80KV/90KV Electronics X Ray Machine Precise Location Laser Locator For Chip Inner Defects Inspection

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX7900
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Name: Unicomp X-ray Inspection Equipment Application: SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage: 80KV/90KV Industry: Electronics Industry
Size: 1200(L)x1200(W)x1500(H)mm X-ray Leakage: < 1uSv/h
Weight: 1120kg Power Consumption: 1KW
Highlight:

90KV Electronics X Ray Machine

,

Precise Location Electronics X Ray Machine

,

Chip Inner Electronics X Ray Machine

Wire Harness Quality Detection AX7900 Electronics Unicomp X Ray Equipment






Description of IC X-Ray machine AX7900:



90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.





APPLICATION of IC Xray machine AX7900:

  • LED, SMT, BGA, CSP, Flip Chip Inspection.
  • Semiconductor, Packaging components, Battery Industry.
  • Electronic components, Auto parts, Photovoltaic Industry.
  • Aluminum Die Casting, Moulding Plastic.
  • Ceramics, Other Special Industries



FEATURES of IC Xray machine AX7900:

  • 90KV 5μm X-ray tube, FPD Detector.
  • Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
  • Motion controls include X/Y table motion plus Z-axis tube and detector movement, ±60° tilt motion (option).
  • Multi-function DXI image processing system.
  • X/Y programming function for multiple image inspection routines
  • Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
  • BGA void/area auto-measurement plus report generation.





Technical Specifications of AX7900



Item Definition Specs
System Parameters Size 1200(L)x1200(W)x1500(H)mm
Weight 1120kg
Power 220AC/50Hz
Power Consumption 1kW
X-ray Tube Type Closed
Max.Voltage 80kV/90kV
Max.Power 12W/8W
Spot Size 5μm/15μm
X-ray System Intensifier FPD
Monitor 22 ‘’LCD
System Magnification 160 X/360X
Detection Region Max.Loading Size 440mm x 400mm
Max.Inspection Area 420mm x 380mm
X-ray Leakage <1μSv/h





Inspection Images of IC X-Ray machine AX7900:


80KV/90KV Electronics X Ray Machine Precise Location Laser Locator For Chip Inner Defects Inspection 0
