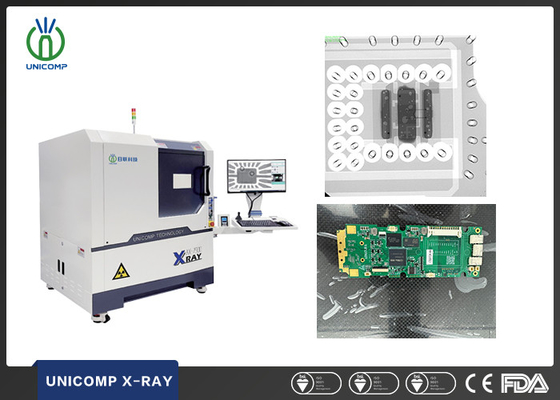

X-Ray Inspection Equipment for PCB with 1.0KW Power Consumption 1280 L x1220 W x1615 H mm

X-Ray Inspection Equipment for PCB with 1.0KW Power Consumption 1280 L x1220 W x1615 H mm
X-Ray Inspection Equipment for PCB with 1.0KW Power Consumption 1280 L x1220 W x1615 H mm

Large Image :  X-Ray Inspection Equipment for PCB with 1.0KW Power Consumption 1280 L x1220 W x1615 H mm

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX7900
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Name: Unicomp X-ray Inspection Machine Industry: Electronics Industry
Size: 1280(L)x1220(W)x1615(H)mm X-ray Leakage: < 1uSv/h
Weight: 1100kg Power Consumption: 1.0KW
Highlight:

1.0KW X-Ray Inspection Equipment

,

X-Ray Inspection Equipment for PCB

,

PCB X-Ray Inspection Equipment

X-Ray Inspection Equipment for Electronics




Description of IC X Ray machine AX7900:


It is broadly utilized in a variety of fields including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small Metal Casting, Electronic Connector Modules, Cables, Aerospace Components, the Photovoltaic Industry, among others.





APPLICATION of IC Xray machine AX7900:

  • Inspection Table of Large Dimensions, Laser Pinpointing for Exact Positioning
  • Precise Control Capabilities, CNC Programming, Automatic Position Adjustment
  • FPD Tilt Adjustable by ±25°
  • Secure Electromagnetic Interlocking System
  • Fingerprint-Based Access Control System
  • Real-Time Surveillance of Radiation Levels





FEATURES of IC Xray machine AX7900:

  • 90KV 5μm X-ray tube, FPD Detector.
  • Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
  • Motion controls include X/Y table motion plus Z-axis tube and detector movement, ±60° tilt motion (option).
  • Multi-function DXI image processing system.
  • X/Y programming function for multiple image inspection routines
  • Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
  • BGA void/area auto-measurement plus report generation.



Technical Specifications of AX7900



Item Definition Specs
System Parameters Size 1280(L)x1220(W)x1615(H)mm
Weight 1100kg
Power
AC 110/220V, 50/60Hz
Power Consumption 1.0kW
X-ray Tube Type
Sealed
Max.Voltage
0~90kV (Adjustable)
Max.Power
8W
Spot Size 85μm
X-ray System Intensifier FPD(Flat Panel Detector)
Monitor 22 ‘’LCD
System Magnification 160 X/360X
Detection Region Max.Loading Size 440mm x 400mm
Max.Inspection Area 420mm x 380mm
X-ray Leakage <1μSv/h





Inspection Images of IC X Ray machine AX7900:


X-Ray Inspection Equipment for PCB with 1.0KW Power Consumption 1280 L x1220 W x1615 H mm 0
