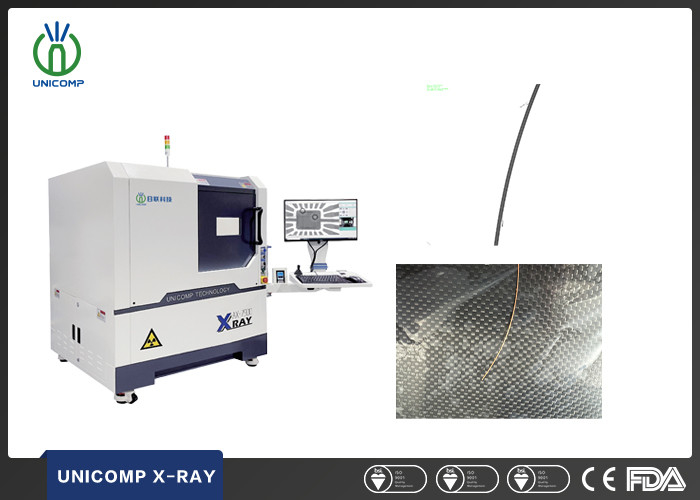

Industry Electronics Industry X-Ray Inspection Equipment for Wire 1280x1220x1615mm
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX7900
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
X-Ray Inspection Equipment for Electronics Description of IC X Ray machine AX7900: It is broadly utilized in a variety of fields including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small Metal Casting, Electronic Connector Modules, Cables, Aerospace Components...
Product Details
Highlight:
X-Ray Inspection Equipment for Wire
,Industry Electronics X-Ray Inspection Equipment
,Wire X-Ray Inspection Equipment
Name:
Unicomp X-ray Inspection Machine
Industry:
Electronics Industry
Size:
1280(L)x1220(W)x1615(H)mm
Weight:
1100kg
Power Consumption:
1.0KW
Product Description
X-Ray Inspection Equipment for Electronics
Description of IC X Ray machine AX7900:
It is broadly utilized in a variety of fields including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small Metal Casting, Electronic Connector Modules, Cables, Aerospace Components, the Photovoltaic Industry, among others.
APPLICATION of IC Xray machine AX7900:
- Large-Scale Inspection Table with Laser Pinpointing for Precise Localization
- High-Precision Control Features, CNC Programming, Automated Positioning Adjustment
- FPD Tiltable by ±25 Degrees
- Secure Electromagnetic Locking Mechanism
- Fingerprint Access Control Mechanism
- Continuous Monitoring of Radiation Levels in Real-Time
FEATURES of IC Xray machine AX7900:
- 90KV 5μm X-ray tube, FPD Detector.
- Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
- Motion controls include X/Y table motion plus Z-axis tube and detector movement, ±60° tilt motion (option).
- Multi-function DXI image processing system.
- X/Y programming function for multiple image inspection routines
- Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
- BGA void/area auto-measurement plus report generation.
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1280(L)x1220(W)x1615(H)mm |
| Weight | 1100kg | |
| Power |
AC 110/220V, 50/60Hz
|
|
| Power Consumption | 1.0kW | |
| X-ray Tube | Type |
Sealed
|
| Max.Voltage |
0~90kV (Adjustable)
|
|
| Max.Power |
8W
|
|
| Spot Size | 85μm | |
| X-ray System | Intensifier | FPD(Flat Panel Detector) |
| Monitor | 22 ‘’LCD | |
| System Magnification | 160 X/360X | |
| Detection Region | Max.Loading Size | 440mm x 400mm |
| Max.Inspection Area | 420mm x 380mm | |
| X-ray Leakage | <1μSv/h | |
Inspection Images of IC X Ray machine AX7900:
