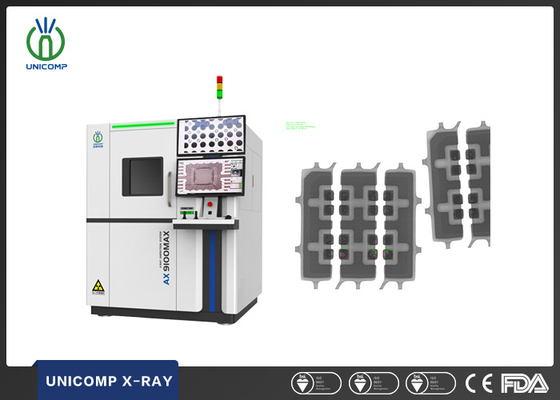

130KV Industrial X-ray Inspection Machine for BGA, PCBA and Solder Voiding Detection AX9100MAX UNICOMP
This system sees extensive deployment across diverse inspection scenarios including BGA, CSP, flip chip, LED, fuses, diodes, PCBs, discrete semiconductors, lithium batteries, miniature metal castings, electronic connector assemblies, wiring harnesses, photovoltaic components, and other microelectronic products.
-
Functions and Feature
- Inspection Image
| System Summary | |
| Footprint | 1455(W)×1760(D)×1945(H)mm |
| Machine Weight | 2400 kg |
| Power Supply |
AC 110~220V, 50/60Hz
|
| Packaging Dimension | 1710(W)×1950(D)×1875(H)mm |
| Packing Weight | 2600 kg |
| Power Consumption | 4 kW |
| X-Ray Tube | |
| Tube Type Type | Sealed type |
| Max. Power Output | 65W |
| Voltage | 0~130kV (Adjustable) |
| Focus Spot Size | ≤7μm |
| Imaging System | |
| Detector | High Resolution FPD |
| Pixel Size | 84μm |
| Effective Detection Area | 129*129mm |
| Frame Rates | 20fps |
| Pixel | 1536*1536 |
| System Magnification | 1600X |
| Software | |
| One-click Zoom in & out | Fast & Automatic navigation of ROI region |
| Fixed-point following during FPD tilting | Table automatic following while Axis tilting seperately |
| Algorithms For Image Super-Resolution Reconstruction | Intelligently improve the overall image clarity with one-click |
| Automatic images comparison | Intelligently adjust overall image contrast with one-click |
| Variety of filter processing algorithms | Sharpening, enhancement, color reversal, denoising image preprocessing functions |
| Motion Control System | |
| Movement Control Method | Dual Joystick, Keypad & Mouse |
| Max. Loading size | Ф620mm |
| Max. Inspection size | 600*450mm |
| Tilting Inspection | Maximum 60°(Tube & Detector) |
| Objective Stage | Horizontal Rotation 360° |
| Industrial PC | |
| Monitor(Dual) | 27 "4K HD display |
| Operating System | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 16G |
| CPU model | Intel i7 Processor |
| Other Features | |
| Door Open | Manually |
| Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor |
| Authority Management | Fingerprint Access Management System, and Support Password Accessing |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
-
