High Specifications Electronic Boards 2D & 2.5D X-Ray Machine Unicomp AX9100MAX With 360 Degrees Rotation Table For BGA And PCB Inspection
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX9100max
Trading Properties
Minimum Order Quantity:
1 set
Price:
can negotiate
Payment Terms:
L/C, T/T
Supply Ability:
100set/montrh
Product Summary
It enjoys broad utilization across diverse domains including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small-scale Metal Casting, Electronic Connector Modules, Cables, and the Photovoltaic Industry, among others. Application Fields Functions and Feature ...
Product Details
Highlight:
2.5D X Ray Machine
,2D X Ray Machine
,PCB Inspection X Ray Machine
X-Ray Tube Type:
Sealed Type
Pixel Size:
84μm
Pixel:
1536*1536
Footprint:
1455(W)×1760(D)×1945(H)mm
Detector:
High Resolution FPD
Product Description
It enjoys broad utilization across diverse domains including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small-scale Metal Casting, Electronic Connector Modules, Cables, and the Photovoltaic Industry, among others.
-
Application Fields
-
Functions and Feature
-

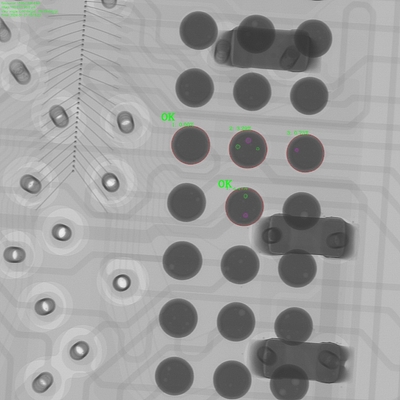

Inspection Image
| System Summary | |
| Footprint | 1455(W)×1760(D)×1945(H)mm |
| Machine Weight | 2400 kg |
| Power Supply |
AC 110~220V, 50/60Hz
|
| Packaging Dimension | 1710(W)×1950(D)×1875(H)mm |
| Packing Weight | 2600 kg |
| Power Consumption | 4 kW |
| X-Ray Tube | |
| Tube Type Type | Sealed type |
| Max. Power Output | 65W |
| Voltage | 0~130kV (Adjustable) |
| Focus Spot Size | ≤7μm |
| Imaging System | |
| Detector | High Resolution FPD |
| Pixel Size | 84μm |
| Effective Detection Area | 129*129mm |
| Frame Rates | 20fps |
| Pixel | 1536*1536 |
| System Magnification | 1600X |
| Software | |
| One-click Zoom in & out | Fast & Automatic navigation of ROI region |
| Fixed-point following during FPD tilting | Table automatic following while Axis tilting seperately |
| Algorithms For Image Super-Resolution Reconstruction | Intelligently improve the overall image clarity with one-click |
| Automatic images comparison | Intelligently adjust overall image contrast with one-click |
| Variety of filter processing algorithms | Sharpening, enhancement, color reversal, denoising image preprocessing functions |
| Motion Control System | |
| Movement Control Method | Dual Joystick, Keypad & Mouse |
| Max. Loading size | Ф620mm |
| Max. Inspection size | 600*450mm |
| Tilting Inspection | Maximum 60°(Tube & Detector) |
| Objective Stage | Horizontal Rotation 360° |
| Industrial PC | |
| Monitor(Dual) | 27 "4K HD display |
| Operating System | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 16G |
| CPU model | Intel i7 Processor |
| Other Features | |
| Door Open | Manually |
| Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor |
| Authority Management | Fingerprint Access Management System, and Support Password Accessing |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
-
Dimensions and Appearance
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
MThe machine is excellent, the service is satisfactory, and the technology is highly professional.
-
JNICE
-
SStable product quality , reliable cooperation partner
