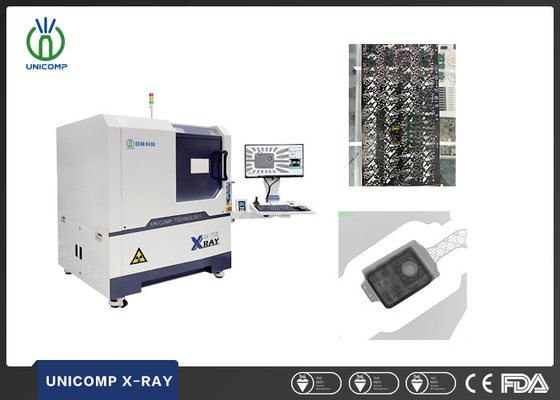

5μm Focus Spot Size X-Ray Inspection Equipment for PCBA 1100kg Capacity

5μm Focus Spot Size X-Ray Inspection Equipment for PCBA 1100kg Capacity
5μm Focus Spot Size X-Ray Inspection Equipment for PCBA 1100kg Capacity

Large Image :  5μm Focus Spot Size X-Ray Inspection Equipment for PCBA 1100kg Capacity

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX7900
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Voltage: 0~90kV (Adjustable) Size: 1280(L)x1220(W)x1615(H)mm
Weight: 1100kg Focus Spot Size: 5μm
Detector: Flat Panel Detector (FPD) Pixel Size: 85μm
System Magnification: 600X Pixel Matrix: 1536*1536mm
Highlight:

1100kg X-Ray Inspection Equipment

,

PCBA X-Ray Inspection Equipment

,

5μm X-Ray Inspection Equipment

X-Ray Inspection Equipment for PCBA






Description of IC X Ray machine AX7900:

It is widely employed across multiple industries, including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small Metal Casting, Electronic Connector Modules, Cables, Aerospace Components, Photovoltaic Industry, among others.





FEATURES of IC Xray machine AX7900:

  • Laser Pinpointing System on a Large Inspection Table for Precise Positioning
  • Accurate Control, CNC Programming Automatic Positioning
  • FPD Tilting ±25
  • Safely Electromagnetic Interlock
  • Fingerprint Access Management System
  • Real-time Monitoring of Radiation





Technical Specifications of AX7900



Item Definition Specs
System Parameters Size 1280(L)x1220(W)x1615(H)mm
Weight 1100kg
Power
AC 110/220V, 50/60Hz
Power Consumption 1.0kW
X-ray Tube Type
Sealed
Max.Voltage
0~90kV (Adjustable)
Max.Power 8W
Spot Size 5μm
X-ray System Intensifier FPD
Monitor 224‘’LCD
System Magnification 600X
Detection Region Max.Loading Area 520mm x 420mm
Max.Inspection Area 460mm x 400mm
X-ray Leakage <1μSv/h
(Meets All International Standards)





Inspection Images of IC X Ray machine AX7900:


5μm Focus Spot Size X-Ray Inspection Equipment for PCBA 1100kg Capacity 0
