Smt Equipment Electronics X Ray Machine , PCB Inspection System Micro BGA On Chop Analysis

China Smt Equipment Electronics X Ray Machine , PCB Inspection System Micro BGA On Chop Analysis supplier
Smt Equipment Electronics X Ray Machine , PCB Inspection System Micro BGA On Chop Analysis supplier Smt Equipment Electronics X Ray Machine , PCB Inspection System Micro BGA On Chop Analysis supplier

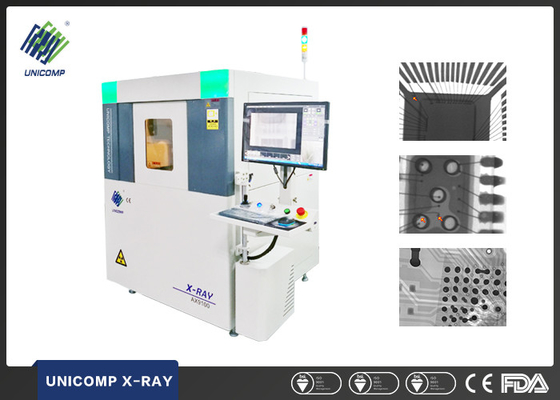

Large Image :  Smt Equipment Electronics X Ray Machine , PCB Inspection System Micro BGA On Chop Analysis

Product Details:

Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: AX9100

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Name: PCB X Ray Machine Tube Voltage: 130KV
Size: 1350(L)x1250(W)x1700(H)mm Warranty: 1 Year
Weight: 1900kg Power Consumption: 1.6kW

PCB X Ray Machine high quality PCB inspection system Micro BGA on chop analysis





Our unicomp X-Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.





X-ray inspection system has been widely applied to Circuit Board Inspection,Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, used for PCBA, packaging, ceramics, plastics, LED, and so on.

Major applications:



PCBA BGA/IC LED Aliminum die casting Battery connector inspecting



1. Semiconductor package



2. Electronic connector module.



3. Original Package



4. Aerospace components



5. Medical appliances



6. Automation components







Item Definition Specs
System Parameters Size 1350(L)x1250(W)x1700(H)mm
Weight 1900kg
Power 220AC/50Hz
Power Consumption 1.6kW
X-ray Tube Type Closed
Max.Voltage 130kV
Max.Power 40W
Spot Size 3μm
X-ray System Intensifier FPD
Monitor 22 ‘’LCD
System Magnification 1600 X
Detection Region Max.Loading Size Φ570mm
Max.Inspection Area 450mm x 450mm
X-ray Leakage <1μSv/h

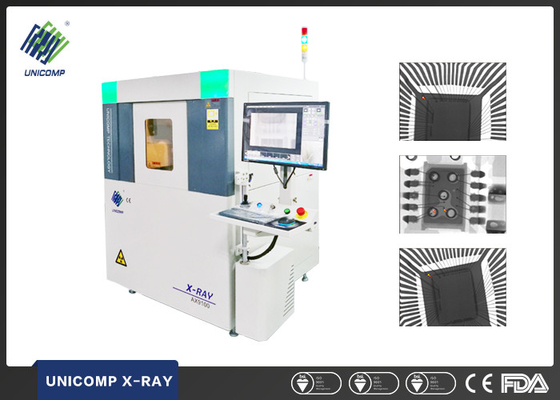

Test Images:





Smt Equipment Electronics X Ray Machine , PCB Inspection System Micro BGA On Chop Analysis
