Non Destructive Testing Pipeline X Ray Flaw Detector , X-Ray Generators
Product Details
x ray generators
,x ray welding machine
Hull Pipeline X-ray Inspection Machine Flaw Detection Export to Germany
Paneramic radiation NDT X Ray Equipment with ripple ceramic x-ray tube plays important parts in carrying on nondestructive examination for nonmetallic, light metal, casting, various alloys and pressure vessels etc, mainly detecting weld defects ,such as crack, blowhole, entrapped slag, incomplete fusion ,blowhole,bubble etc ,also using for shipbuilding ,airplane and national defense etc industry field
Controller
(1)The special design of high frequency technology can avoid the
interference by power spikes.Even though the voltage changes,it can still work.
(2)All the signal wires in the controller are imported from South Korea to improve the quality.
(3)Take the isolation technology of the low voltage and the high voltage to ensure the controller working steady.
(4)Posses the reliable "time-delayed" function, suitable to operate in the open field.
(5)High degree of automation with the function of trouble shooting and indication.
(6)Controller adopts design of hardware with a wide operative range,having the
advantage of long service and low failure rate.
(7)Strictly comply with 1:1 working/resting regulation,eliminating the disoperation.
Applications:
Suitable for national defense,shipbuilding,petroleum,chemical,machinery,aerospace,and construction industries inspect for material such as hull,pipeline,high pressure vessel,boiler,aircraft,vehicles and bridges etc,spare parts welding quality,internal defects and various light metal,rubber,ceramics etc.processing quality.

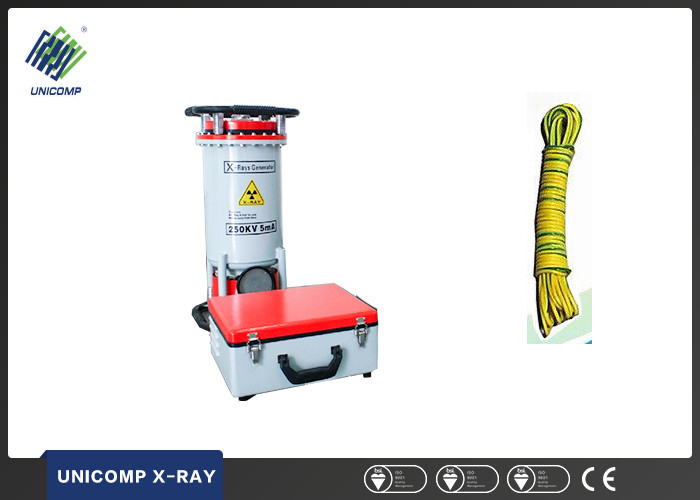

Directional Portable X-ray Detector (Ceramic X-ray tube)
| Model |
|
Power |
Focus Size |
Radiation Angle |
Max Penetrating Power |
Size |
Weight |
| XXG-1605 | 50-160 | 1.8 | 1.5×1.5 | 40°＋5° | 20 | 220*220*560 | 20 |
| XXG-2005 | 120-200 | 2.0 | 2.0×2.0 | 40°＋5° | 30 | 250*250*620 | 26 |
| XXG-2505 | 150-250 | 2.5 | 2.0×2.0 | 40°＋5° | 40 | 260*260*740 | 28 |
| XXG-3005 | 170-300 | 3.0 | 2.5×2.5 | 40°＋5° | 50 | 320*320*820 | 34 |
| XXG-3505 | 200-350 | 3.5 | 2.5×2.5 | 40°＋5° | 60 | 320*320*820 | 35 |
-
