Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System

Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System
Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System

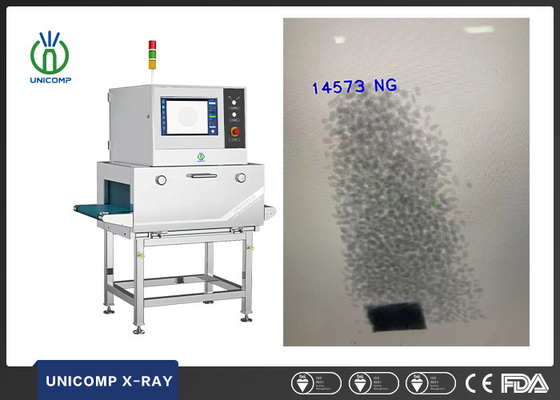

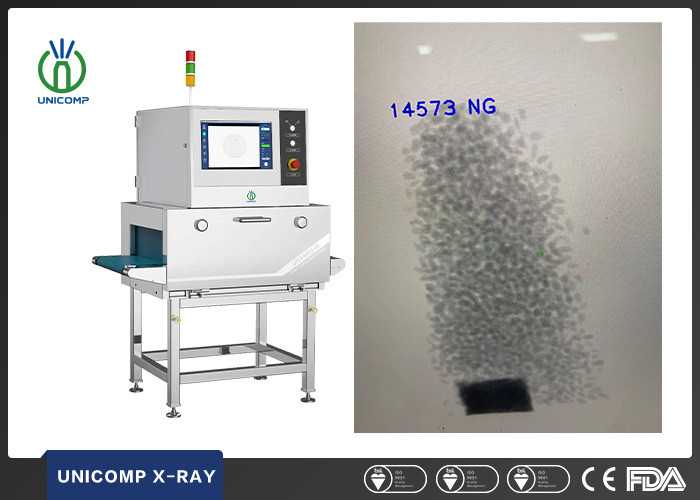

Large Image :  Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: CE
Model Number: UNX4015N
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD
Packaging Details: Unicomp package
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Machine Weight: 500kg X-ray Tube: 80-120kv/210-480W
Power Supply: AC 110/220V, 50/60Hz Max. Loading Weight: 10kg
X-ray Detector: Diode Array With 0.4mm Resolution Conveyor Speed: 10-60M/min
Heavy Load Conveyor Speed: 10-40M/min
High Light:

120kv X Ray Detection Machine

,

60M/min X Ray Detection Machine

,

Foreign Matter unicomp x ray machine

full-automatic x-ray foreign matter detection machine with optional reject system





Application



UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.





X-ray images

UNX4015N-xray







Specificaitions



Equipment
Features		 Dimension 1168(W)X985(D)X1510(H)mm
Machine weight 500kg
X-ray tube 80-120kv/210-480W
Power Supply AC 110/220V, 50/60Hz
Max. Loading weight 10kg
X-ray detector Diode array with 0.4mm resolution
Channel size 400mm(W)*150mm(H)
Conveyor Speed 10-60M/min
Heavy load Conveyor Speed 10-40M/min
Operating Range 10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing
Capability Detection Accuracy SUS BALL≥ø0.3mm
SUS wire≥ø0.2*2mm
Glass ball≥ø1.0mm
Ceramic ball≥ø1.0mm
System Computer Communications 1*LAN,2*USB
Industrial PC 17"LCD touch screen；Windows 10
Optional configuration Rejector

Sound-Light alarm, flipper,dropout,air jet,

Pusher,chute,shuttle
Other Ingress protection Conveyor: IP66, Others: IP65
X-Ray Safety <1μSv/h

Features





  • Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System 1Easy to Operate: one button start&stop, optional default product

  • Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System 1Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product

  • Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System 1Sensitivity adjustment, alarm management, powerful data statistics report

  • Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System 1The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI

  • Full Automatic Foreign Matter X Ray Detection Machine With Optional Reject System 1Tool-free for conveyor belt and protective curtains

Dimensions and Appearance

UNX4015N-footprint
