Foreign Material Stone / Glass / Metal X Ray Inspection Machines for Food Package

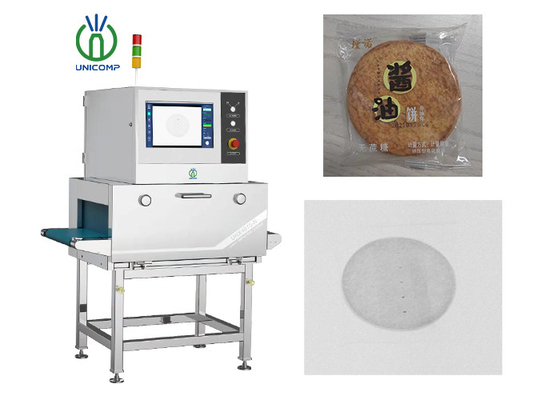

Name: Foreign Material Stone / Glass / Metal X Ray Inspection Machines for Food Package
Brand: UNICOMP
SKU: UNX4015N
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (135 reviews)

Large Image : Foreign Material Stone / Glass / Metal X Ray Inspection Machines for Food Package

Product Details:

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	UNX4015N

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	can negotiate
Packaging Details:	Unicomp Wood.
Delivery Time:	15 days
Payment Terms:	L/C, T/T
Supply Ability:	100set/montrh

Contact Now

Detailed Product Description

Machine Weight:	800kg	X-ray Tube:	80-120kv/210-480W
Power Supply:	AC 110/220V, 50/60Hz	Max. Loading Weight:	15kg
X-ray Detector:	Diode Array With 0.4mm Resolution	Conveyor Speed:	10-60M/min
High Light:	Foreign Material UNICOMP X Ray Machine , Foreign Material X Ray Inspection Machines , Food Package UNICOMP X Ray Machine

X-Ray detection equipment for dry pack food inspection with auto rejector

Applications of Food Xray UNX4015-N

UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.

Technical Specifications of Food Xray UNX4015-N

Equipment Features	Dimension	1500(W)X1300(D)X2050(H)mm
	Machine weight	800kg
	X-ray tube	80-120kv/210-480W
	Power Supply	AC 110/220V, 50/60Hz
	Max. Loading weight	15kg
	X-ray detector	Diode array with 0.4mm resolution
	Channel size	400mm(W)*150mm(H)
	Conveyor Speed	10-60M/min
	Heavy load Conveyor Speed	10-40M/min
	Operating Range	10°C to 40°C (50°F to 104°F), 30% to 90% relative humidity non-condensing
Capability	Detection Accuracy	SUS BALL≥ø0.3mm
		SUS wire≥ø0.2*2mm
		Glass ball≥ø1.0mm
		Ceramic ball≥ø1.0mm
System Computer	Communications	1LAN,2USB
System Computer	Industrial PC	17"LCD touch screen; Windows 10
Optional configuration	Rejector	Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle
Other	Ingress protection	Conveyor: IP66, Others: IP65
Other	X-Ray Safety	<1μSv/h

X-ray images

Features of Food Xray

Easy to Operate: one button start & stop, optional default product
Provide High precision automatic foreign detection, It can effectively identify metal, ceramic,glass, bone, shell and other malignant foreign matter in the product
Sensitivity adjustment, alarm management, powerful data statistics report
The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
Tool free for conveyor belt and protective curtains

Dimensions and Appearance of Food Xray UNX6030N
