Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV

Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV
Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV

Large Image :  Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV

Product Details:
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: UNS160-A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description

NDT UNS160 X Ray Equipment



Applications of NDT X-ray Machine UNS 160-A :



  • various types of metal castings
  • hardware products
  • plastic products
  • refractory materials
  • resin materials
  • review conduct non-destructive testing on various small and micro products such as materials





Technical Specifications of NDT X-ray Machine UNC160

System Parameters size 1500mm*1068mm*1794mm
Equipment weight 2000kg
Power 6KW
Package size
1820*1560*2150mm
X-ray light pipe Light pipe type Closed integrated tube
tube voltage 160kv
focus size 0.5mm
Light tube power 480w
imaging system detector Amorphous silicon
Effective imaging area
427*427[mm]
Pixel size
139μm
pixel matrix
3072*3072
Motion Control System motion control mode CNC automatic detection/manual detection
Detection imaging method left and right transillumination
Stage rotation angle
±360°
Maximum load weight
30KG
Maximum detection range
φ400*500[mm]
Mechanism movement speed
≥70mm/s





Features of NDT X-ray Machine UNS160:



  • High cost performance: Specially designed for small/micro product testing, high concentration
  • Perfect design, complete functions and compact structure.
  • High security: High level of protection, radiation dose is far lower than other countries
  • Standard; equipped with multiple safety protection measures.
  • Excellent image processing: One-click optimization processing, simple operation Fast, HD image quality.
  • High detection efficiency: It has a convenient and efficient control system; it has CNC automatic detection function; it has fast movement speed.

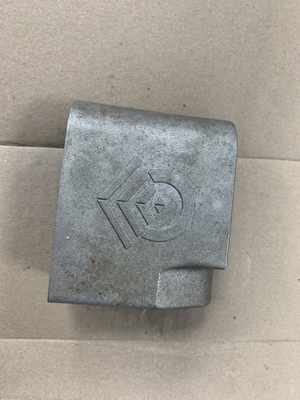

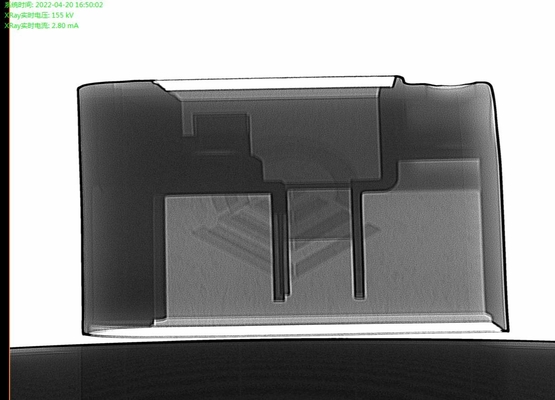

Inspection Images



Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV 0

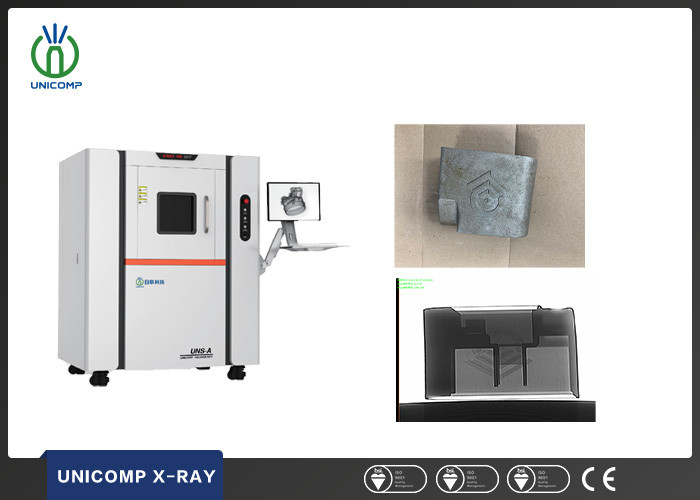

Dimensions and Appearance



Auto Casting Inner Defects Recognition Fully Shield Cabinet X Ray NDT Equipment 160KV 1
