Using Micro-focus X-ray to inspect alignment of Anode and Cathode for polymer Lithium Battery
2021/08/23
A fully automatic inline X-ray installed in a polymer Li-Ion company to control the alignment of the lithium battery Anode and Cathode, and measure the electrode bending angle
Project Name:
Automatic Inline X-ray Inspection System
Model:
Unicomp LX-1R25-110UN Inline X-ray for Polymer Li-ion
Customer Evaluation:
The X-ray machine runs stably, the measurement is accurate with high stable GR&R result, the technical services are satisfied, the overall performance of the X-ray system are superior.
Inspecting item:
Test the alignment of Anode and Cathode of the Lithium batteries and the bending angle of the electrode.
Produts pictures:

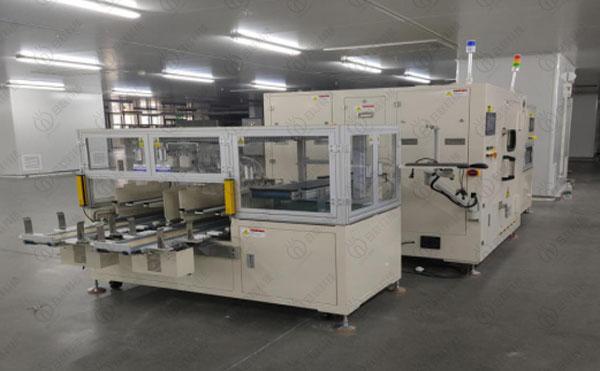

Installation Reference:
X-Ray Images:
