110kV Inline Xray Machine
Product Details

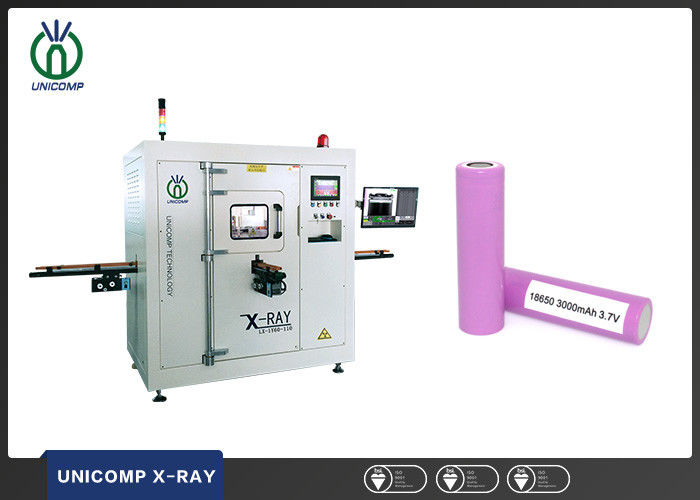

Unicomp 110kV 30ppm & 60ppm Inline Xray machine for lithium cell automatically inspection with NG part auto-sorting
Aftersales service:
Ø A professional service team
Ø Country-wide network
Ø 24/7 hotline
Ø Onsite installation, debugging and training services
Ø Scheduled call & visits
Ø Life-long free software upgrading
Prodcution Capacity
Ø Wuxi Factory: 6000M2
Ø Shenzhen Factory: 9000M2
Ø Chongqing Factory:8500M2
Ø Current Capacity: 300 Sets /Month
Ø Expansion Capacity: 1000 Sets/Month
| System Parameters | Dimension(L×W×H) | 3300mmX1500mmX2000mm |
| Weight | 2.5t | |
| Working Environment | 0～40℃ | |
| Power | 4KW | |
| Accuracy | ±60μm | |
| Operating Mode | In-line | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 110kv | |
| Max.Current | 0.45mA | |
| Focal Spot Size | 15um | |
| Quantity | 1/2 | |
| Image Detector | Type | Image Intensifier |
| Resolution | 110 Lp/cm | |
| Size | 4” | |
| Quantity | 1/2 | |
| Applied to | 18650 Cylindrical Battery | |
| Max.Capacity | 60ppm/130ppm | |
| Operation Ratio | ≥95% | |
| Applicable Size | 18650 Cylindrical Battery | |
| Items | Alignment Metric | |
| Customer Cases | Panasonic /DLG/Liaoning BICO | |
| Equipment Features |
*Applicable to the detection of cylindrical batteries like 18,26 series ; *High speed, high stability ; *Modular design with high expansibility, customized automatic battery loading and unloading *Automatic docking with production lines, unattended operation; *Unicomp-owned R&D of in-line lithium battery inspection software system |
|
Features:
1, Fully automated operations, reduce manpower, reduce production costs, improve production efficiency and quality consistency;
2, Software automatically determine, improve product consistency and quality assurance;
3, Comes with SPC software analysis, easy process control and quality data analysis;
4, The design fully consider the safety factors to ensure the safety of personal protection;
5, Beautiful appearance , generous, enhance the corporate reputation.
Company Introduction:
- 15 years focused on X-ray technology R & D and equipment mfg.
- A national Hi-tech enterprise with international vision
- 3 modern R & D and manufacturing factories, 2 software companies
- 240 patents & 30 software copyright
- 300 professional R & D engineers, sales and service staff
- Company certified by ISO9001, ISO14001 and OHSAS18001 system
- Products complied with CE, FDA and passed Chinese MPS testing
- Provincial Engineering Technology Research Center
- Provincial science and technology award
- Monthly production capacity up to 500 sets
-
