Inline X-Ray Detection Machine Checking Semiconductor Electronic Components
Product Details
x ray equipment
,electronic inspection equipment
,Semiconductor X-Ray Detection Machine
Inline X-ray Detection Equipment Checking Semiconductor Electronic Components
Unicomp Technology has a dedicated pool of local and foreign senior professional R & D engineers with extensive experience in high level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University etc. to advance the core technology of X-ray imaging. Presently Unicomp has submit a total of 256 patents with 199authorized. Unicomp has obtained numerous management system certification, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

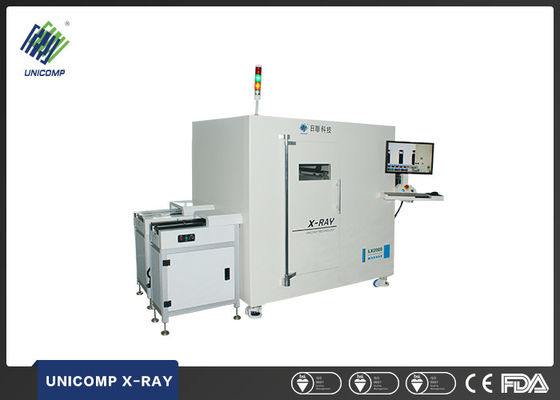

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.
| Item | Definition | Specs |
| System Parameters | Size | 1385(L)x1400(W)x1620(H)mm |
| Weight | 2000kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 3.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 3μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 200 X | |
| Detection Region | Orbit Adjusting Range | 80-350mm |
| X-ray Leakage | <1μSv/h | |
| Control Mode | CNC Motion Mode | |
-
