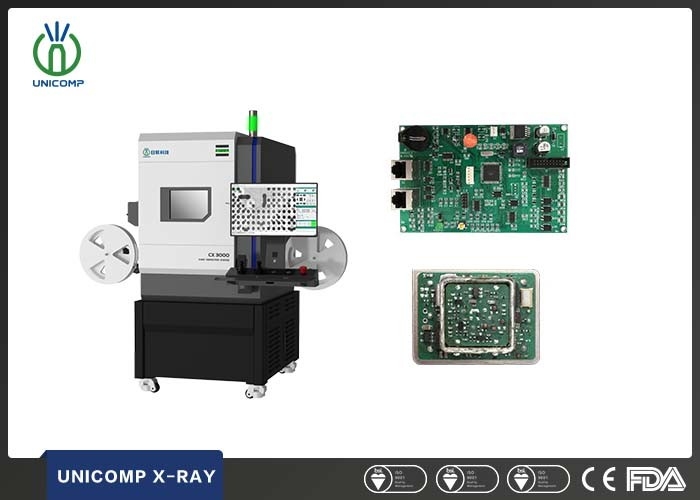

CX3000 Electronics PCBA Unicomp X Ray Detection Machine , Benchtop X Ray Machine
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
CX3000
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T,L/C
Supply Ability:
30 sets per month
Product Summary
CX3000 Benchtop Electronics PCBA Unicomp X-ray Detection Equipment Features: 1. 5μm 100kV X-ray tube; 2. Dynamic FPD with high-resolution of 1000×1124; 3. Equipped with 360° rotary fixture to eliminate PoP shadow; 4. The detection area easily positioned by external rocker; 5. Inspection & Analysis ...
Product Details
Highlight:
x ray detection equipment
,x ray inspection equipment
,Electronics PCBA X Ray Detection Machine
Name:
X-ray Inspection Machine
Application:
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage:
100KV
Industry:
Electronics Industry
Size:
750(L)x570(W)x890(H)mm
X-Ray Leakage:
< 1uSv/h
Weight:
300kg
Power Consumption:
0.5kW
Product Description
CX3000 Benchtop Electronics PCBA Unicomp X-ray Detection Equipment
Features:
1. 5μm 100kV X-ray tube;
2. Dynamic FPD with high-resolution of 1000×1124;
3. Equipped with 360° rotary fixture to eliminate PoP shadow;
4. The detection area easily positioned by external rocker;
5. Inspection & Analysis of soldering joint and materials inner structure;
6. High safety with seamless lead welding, interlock and emergency button.
Applications:
BGA , CSP , LED , Flip Chip , Semiconductor,
Battery Industry , Small Metal Casting,
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry,
Other Special Industries.
| Item | Definition | Specs |
| System Parameters | Size | 750(L)x570(W)x890(H)mm |
| Weight | 300kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kV | |
| Max.Power | 200μA | |
| Spot Size | 5μm | |
| Detector | Intensifier | FPD |
| X-ray Coverage | 48mm x 54mm | |
| Resolution | 208Lp/cm | |
| Work Station | Max.Loading Size | 200mm x 200mm |
| Max.Inspection Area | 200mm x 200mm | |
| Oblique Angle Views | 360° rotary fixture (Optional) | |
| X-ray Leakage | <1μSv/h | |
Inspection Images:
