LX2000 Online X Ray Detection Equipment Grey Color Checking LED SMT BGA CSP
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
LX2000
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
LX2000 Online X-ray Detection Equipment Checking LED SMT BGA CSP The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation. ...
Product Details
Highlight:
x ray inspection equipment
,x ray inspection system
,LED Online X Ray Detection Equipment
Color:
Grey
Name:
X-ray Inspection Machine
Application:
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Industry:
Electronics Industry
Size:
1600(L)x1450(W)x1600(H)mm
Power Consumption:
2kW
Product Description

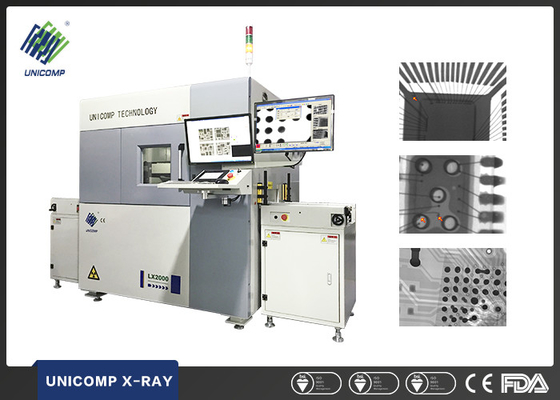

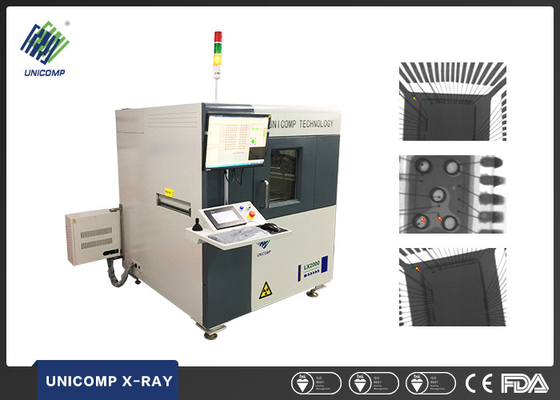

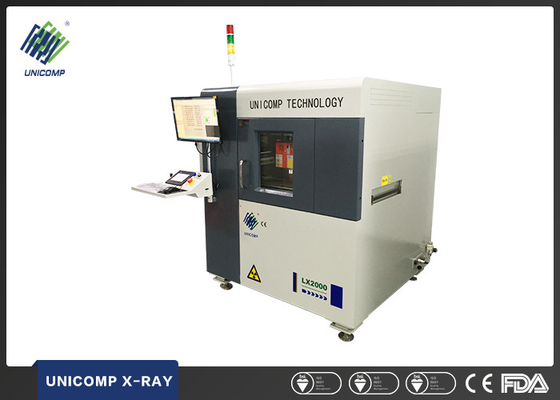

LX2000 Online X-ray Detection Equipment Checking LED SMT BGA CSP
The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.
High resolution x-ray images are generated using a closed microfocus 130kV tube with leading edge FPD (Flat Panel Display) detectors. This imaging chain combination is excellent for multiple applications including; PCBA, Semiconductor, Encapsulated Components, and Solar Cell just to name a few.
| Item | Definition | Specs |
| System Parameters | Size | 1385(L)x1400(W)x1620(H)mm |
| Weight | 2000kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 3.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 3μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 200 X | |
| Detection Region | Orbit Adjusting Range | 80-350mm |
| X-ray Leakage | <1μSv/h | |
| Control Mode | CNC Motion Mode | |
