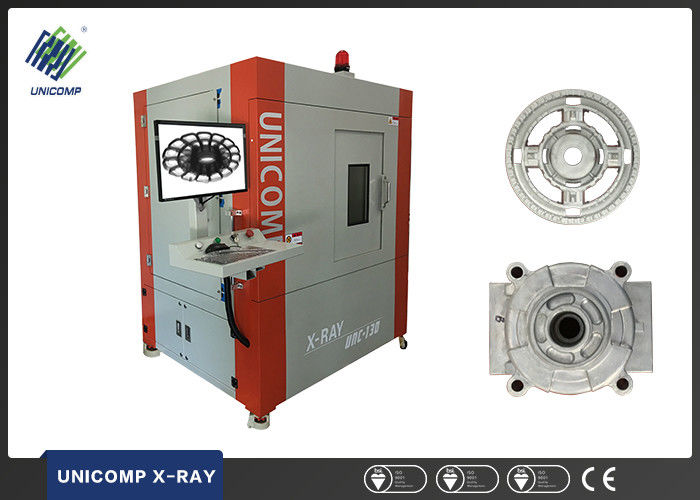

Aluminum NDT X ray Detection Machine Aerospace Automotive Parts UNC130
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE
Model Number:
UNC130
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
10 sets per month
Product Summary
Aluminum NDT X ray Detection Machine Aerospace Automotive Parts UNC130 Features: ● 130kV,20μm X-ray tube, FPD; ● Multi-function workstation with 360°"ARC" motion and shift; ● C-arm fixture design enabling five-axis motion detection(Auto lift and descend); ● User friendly software design for easy ...
Product Details
Highlight:
x ray inspection equipment
,x ray inspection system
,Aluminum NDT X ray Detection Machine
Name:
X-ray Inspection Machine
Application:
Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage:
130KV
Weight:
2T
Power Consumption:
5kW
Max. Penetration:
50mm
Product Description
Aluminum NDT X ray Detection Machine Aerospace Automotive Parts UNC130
Features:
● 130kV,20μm X-ray tube, FPD;
● Multi-function workstation with 360°"ARC" motion and shift;
● C-arm fixture design enabling five-axis motion detection(Auto lift and descend);
● User friendly software design for easy interfacing can facilitate,customized software;
● Max. detection area Φ300*500mm.
Applications:
● Precise casting parts and parts for Automobile
● Crop,Ceramics and Metal parts
● Rubber and Electronic components
| System Parameters | Dimensions | 1602mm*1296mm*2148mm(L*W*H) |
| Equipment weight | 2T | |
| Power | 5KW | |
| Maximum penetration(AL) | 50mm | |
| Detection range | Φ300*400mm | |
| Load weight | 30kg | |
| Work environment | 5-40° ≤80%HR | |
| Install power | AC220V±5% 50HZ | |
| X-ray leakage dose rate | ≤1uSv/h | |
| X-ray Generator | Tube voltage | 130kV |
| Power | 65W | |
| Focal size | 5μm | |
| Detector | Image area | 115mm*65mm |
| Pixel matrix | 1536mm*864mm | |
| Pixel size | 75μm | |
| Frame rate | 60fps | |
| Software Functions | Image processing | Brightness and contrast adjustment; stacking frames; window width and window position adjustment; image enhancement, filter, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display of the mouse pointer image coordinate and the gray value |
| Image measurement | Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image; | |
| Motion control | Speed adjustment of each moving axis; CNC programming; manual operation | |
| Additional Function | High resolution, subtle defect recognition ability to upgrade with the imported 5um micro focus source | |
| Save the detection time of the bulk of the work piece via the CNC programmable control | ||
| No dead angle detection with C-arm five-axis motion detection mechanism | ||
| Servo stepper motor drive to make the operation stability | ||
| Voltage regulator, isolation, filtering, grounding and other protective functions are complete | ||
| Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional) | ||
Inspection Images:
