Precision Casting Industrial X Ray Machine NDT Defect Inspection UNC130
Product Details
industrial x ray equipment
,industrial x ray systems
,Casting Industrial X Ray Machine

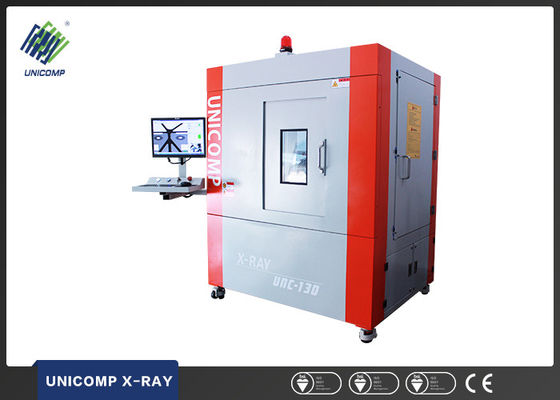

Precision Casting Industrial X Ray Machine NDT Defects Detection UNC130
UNC130 is an excellent solution for casting inspection activities of large quantity parts production as well as for R&D. From large multi-national companies to small/medium-sized foundries and global car manufacturers, all trust their inspections to this robust system.
1. Optimized design and new ultrasharp monitor
2. Simplified, enhanced, and reliable X-ray inspections
3. Exceptional 2D image quality in the shortest time
4. User-friendly Software interface
5. Minimal system footprint for limited space
UNC130 assists you in detection of casting flaws in items such as:
1. Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)
2. Turbine blades
3. Fiber-reinforced materials
4. Ceramics
5. 3D printed materials
Technical Data
| Attribute | Respective Value |
| Maximum penetration(FE) | 50mm |
| Equipment weight | 2T |
| System Dimension | 1602mm*1296mm*2148mm(L*W*H) |
| X-ray Tube | 160KV |
| Detection range | Φ300*400mm |
| Pixel Pitch | 75μm |
| Focal size | 5μm |
| Image Area | 115mm*65mm |
Inspection Images:
-
Pgood product
-
SStable product quality , reliable cooperation partner
-
