| Name: | Electronics X Ray Machine | Tube Voltage: | 100KV |
|---|---|---|---|
| Industry: | Electronics Industry | Scanning Size: | 440 X 60 Mm |
| X-ray Leakage: | < 1uSv/h | Weight: | 1000kg |
| High Light: | electronic component counter,electronic parts counter |
||

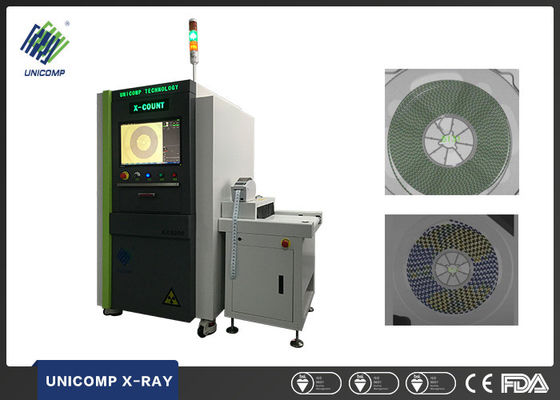

SMD Chip Electronic Component Unicomp X ray Counter Inspection System
This equipment is mainly used for the rapid counting of the production of reel materials, the material type includes all the resistance-type materials and IC materials; through the use of X-RAY imaging of the production materials and access to image information, R & D of the image algorithm calculation, access to the actual number of materials, while the number of materials in accordance with the classification of statistics.
SMD X-Ray Chip Counter
Features
Fast speed and high accurate Chip counting,reducing labor cost
One-button operation,Automatic counting .
Minimum component size 01005
System Accuracy >99.8%
Count time<10s 7''S/Tape & Reel
Count time<18s 17''S/Tape & Reel
Auto-scan barcode with scanner or camera
New label printing with P/N and quantity
Integration to ERP & Warehouse system
Capable for interface with intelligent storage system
Application
SMD chip tap&reel , IC package counting
Electronic components production , shipping storage and inventory management
Production components quantity check
| Model | CX6000 |
| Max.Voltage | 100kV |
| Max.Current | 3mA |
| Spot Size | 0.4mm |
| Working Method | Stand alone |
| Imaging system | Line scan camera |
| Scanning accuracy | >99.8% |
| Scanning size | 440 X 60 mm |
| Minimum material size | 01005 |
| Display | 22''LCD Display |
| Dimensions | 17000 X 900 X 970 mm |
| Weight | 1000 kg |
| Safety | <1μSv/hr(<0.1mR/hr)5cm away from the housing |
| Control | Keyboard/Mouse, Integration with the scanner ,Intelligent camera ,Barcode printer , counting result automatic transfer to MES & ERP system |
| Automatic detection | Standard |
| Applications | Electronic components production, shipping, storage and other management counting |
| 1. Focus size is a variable, please contact Unicomp Technology for more information 2.Radiation Safety Statement: All Unicomp Technology X-ray equipment manufactured meets the requirements of FDA-CDRH in CFR 21 1020, 40-J for long cabinet X-ray systems. The FDA-CDRH stipulates that the amount of X-ray radiation overflowing from any surface of the X-ray cabinet system must not exceed 0.5 milliliter/hr.2''. The X-ray system of Unicomp Technology is less than 15 times the specified value. |
|
