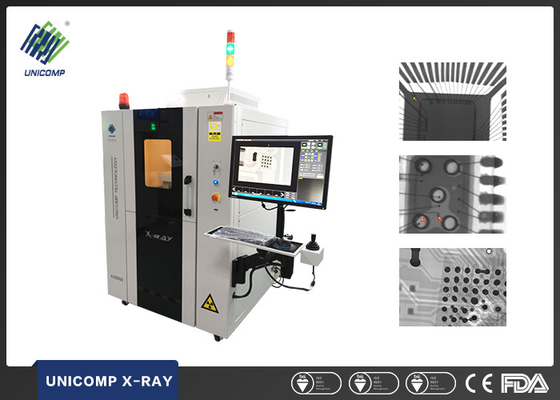

Electronics Unicomp PCB X Ray Machine SMT Cabinet For PCB LED , Metal Casting
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX8500
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
Electronics SMT Cabinet Unicomp PCB X Ray Machine for PCB LED Installation Unicomp will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site ...
Product Details
Highlight:
pcb x ray inspection
,pcb inspection system
,Electronics PCB X Ray Equipment
Color:
Grey And Black
Name:
PCB X Ray Machine
Tilt Detection Angle:
60°
Tube Voltage:
100KV
Power:
2kW
Size:
1250(L)x1300(W)x1900(H)mm
Product Description
Electronics SMT Cabinet Unicomp PCB X Ray Machine for PCB LED
Installation
Unicomp will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site radiation survey at the time of installation with supporting documents.
Training
Training will include:
Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.
| Item | Definition | Specs |
| Motion Control System | Motion Control Mode | Mouse&Joystick&Keyboard |
| Max.Load Dimension | 500x500mm | |
| Max.Detection Dimension | 350x450mm | |
| Tilt Detection Angle | 60° | |
| X-Ray System | Tube Type | Closed |
| Voltage/Current | 100kv/200μA | |
| Focal Spot Size | 5μm | |
| FPD Detector | FPD | |
| Physical & Image Processing Parameters | Length x Width x Height | 1250 x 1300 x 1900 mm |
| Weight | 1500 kg | |
| Power | 2kW | |
| System Magnification | 500 x | |
| Leakage Dose | <1μSv/h |

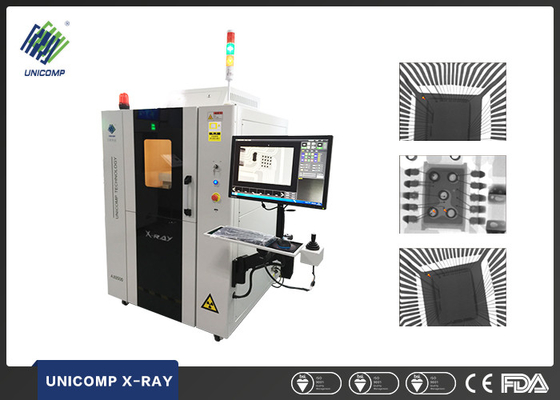

Inspection Images:
