| Name: | PCB X Ray Machine | Max.Loading Size: | 510mm X 420mm |
|---|---|---|---|
| Tube Voltage: | 100KV | Power: | 220AC/50Hz |
| Size: | 1080(L)x1180(W)x1730(H)mm | X-ray Leakage: | < 1uSv/h |
| High Light: | pcb x ray inspection,pcb inspection system,Motherboard X-Ray Inspection System |
||

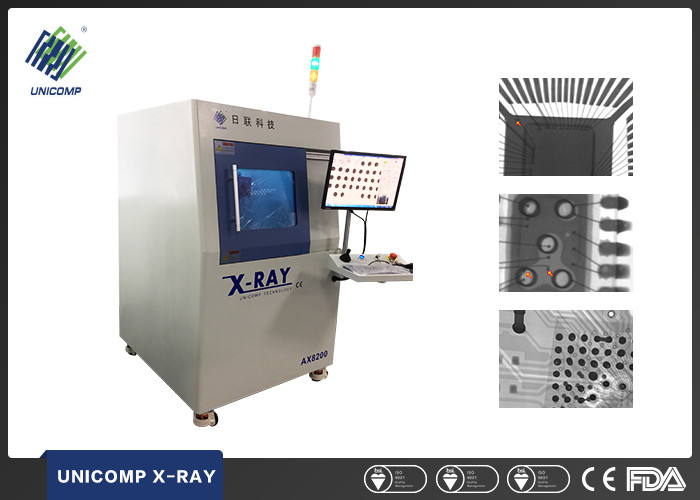

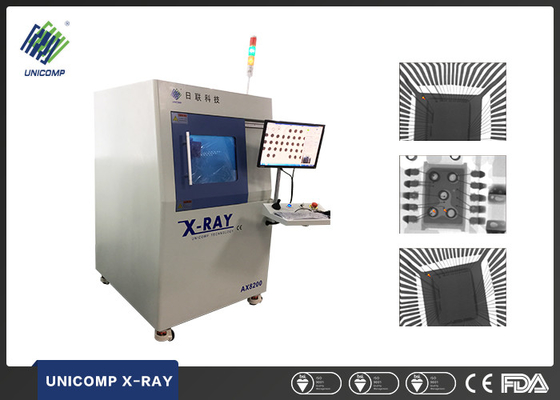

Extra large inspection area and plenty of power PCB X RAY Machine for BGA
The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)
OUR SERVICE
1. Your inquiry will be replied in 12 hours.
2. Original Manufacture to customers, with competitive price.
3. We provide one year warranty, free training and whole life technology support.
4. We can arrange the shipment by air, DHL,Fedex, UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment.
5. Well-trained and Professional after-sales service team to support you.
6. Manual will package with machine . It will show you how to use machine step by step.
7. Items are only shipped after payment is received.
BGA void/area auto-measurement plus report generation.
Installation
Unicomp will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site radiation survey at the time of installation with supporting documents.
Training
Training will include:
Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.
|
Item |
Definition |
Specs |
|
System Parameters |
Size |
1080(L)x1180(W)x1730(H)mm |
|
Weight |
1150kg |
|
|
Power |
220AC/50Hz |
|
|
Power Consumption |
0.8kW |
|
|
X-ray Tube |
Type |
Closed |
|
Max.Voltage |
90kV/100kV |
|
|
Max.Power |
8W |
|
|
Spot Size |
5μm |
|
|
X-ray System |
Intensifier |
4"Image Intensifier |
|
Monitor |
22"LCD |
|
|
System Magnification |
600x |
|
|
Detection Region |
Max.Loading Size |
510mm x 420mm |
|
Max.Inspection Area |
435mm x 385mm |
|
|
X-ray Leakage |
< 1uSv/h |
|
