| Name: | PCB X Ray Machine | Tube Voltage: | 100KV/110KV |
|---|---|---|---|
| Industry: | Electronics Industry | Size: | 1100(L)x1100(W)x1650(H)mm |
| X-ray Leakage: | < 1uSv/h | Power Consumption: | 1.5KW |
| High Light: | pcb x ray inspection,pcb inspection equipment,SMD Cable X Ray System |
||

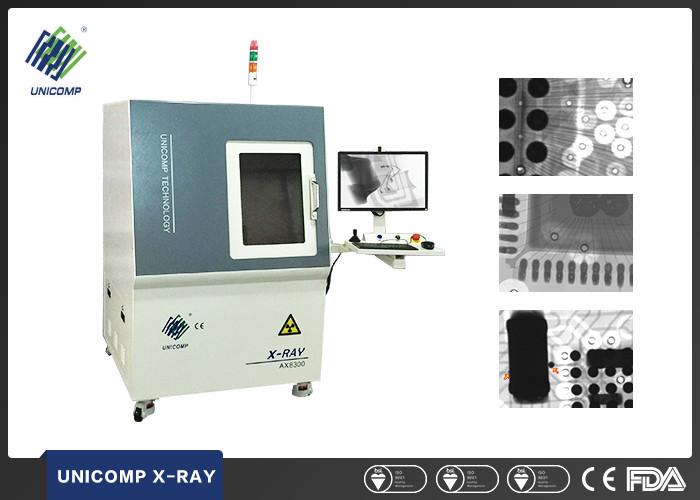

SMD Cable Electronics Components Unicomp PCB X Ray Machine AX8300
X-ray inspection system has been widely applied to Circuit Board Inspection,Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, used for PCBA, packaging, ceramics, plastics, LED, and so on.
Features:
110kV Microfocus x-ray source,
High resolution FPD
X/Y/Z/Tilt Motions (table, tube, FPD)
360° Table Rotation
Angle View up to 70 Degrees
Point and Click Location Navigation
CNC Programming for Multiple Image Inspection Routines
Max Inspection Area 360 x 340mm
Applications
BGA Inspection
Inspection of over molded electrical connectors
Encapsulated components
Aluminum die castings
Molded plastic components
Ceramics
Aerospace components
Electrical / mechanical components
Electronic components
SMT assemblies
Pharmaceuticals
Automotive assemblies
Agriculture
Counterfeit inspection
Cell phone battery inspection
Model | AX8300 |
Max kV/type | 110 kV(Option90 kV)/Sealed |
Max.Electron beam power | 25W(Option8W) |
Focal spot size1 | 7μm |
System magnification | Up to 1000X |
Imaging system(Option) | Flat Panel Detector |
Manipulator | 8-axis with tilt 50 degree |
Measuring volume | Max load area 300x300mm2 |
Max.sample weight | 5kg |
Monitors | 22" LCD |
Cabinet dimensions | 1100x1100x1650mm |
Weight | 1700kg |
Radiation safety2 | <1μSv/hr(<0.1mR/hr)at the cabinet surface 5cm |
Control | Keyboard/Mouse/Joystick |
Automated inspection | Standard |
Primary applications | Chip inspection/Electronic components/Auto parts.etc |
1.Focal spot size is a variable.Please consult the unicomp | |
