Strong Penetration Real Time X Ray Equipment Standard Inline Production Line
Product Details
real time x ray inspection equipment
,real time x ray system

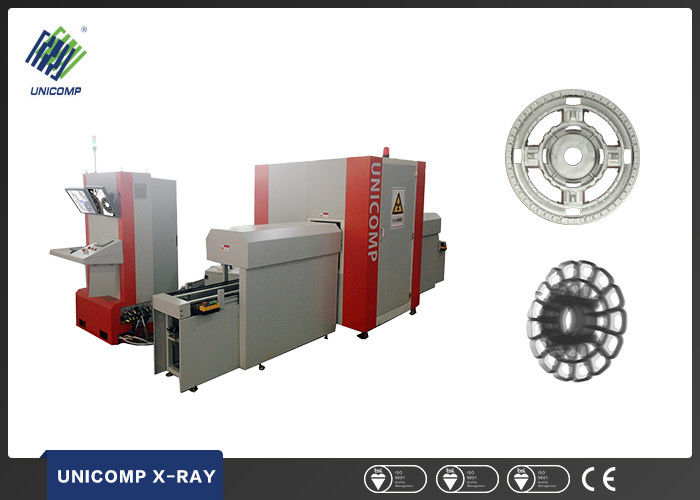

Standard Inline Production Line NDT Real Time X Ray Inspection Equipment
Features:
* The implementation of automatic location detection
* Automatic identification of defect detection
* The unqualified product identification marking
* OK and NG are sorting and recognition
* High contrast, high quality image detection
Applications:
Aviation
Construction
Manufacturing
Industrial Plants (Nuclear, Petrochemical, Power, Refineries, Fabrication Shops, etc.
Pipelines
Railways
Food industry
130KV, 160KV, 225KV,320KV, 450KV, X-ray Detection System
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
After-Sales Service
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
|
Adjustment the range of X-ray apparatus and image forming apparatus |
600mm～800mm |
|
Lifting range of arc type detection arm |
0～300mm |
|
The movable range of the detection platform in the X axis direction |
0～250mm |
|
The movable range of the detection platform in the Y axis direction |
0～250mm |
|
Loading capacity of test platform |
≤10kg |
|
Right and left swing angle range of arc type detection arm |
±15° |
|
Front and back swing angle range of arc detection arm |
±15° |
|
Conveying stroke of feeding / discharging manipulator |
875mm |
|
Operating speed of feeding / discharging manipulator |
About 500mm/s |
|
Operating speed of feeding / discharging line |
About 262mm/s |
|
Size of the protective lead room (L * w * h) |
1650mm×2014mm×2097mm (Outer dimension) |
|
Weight of protective lead room |
About 2.5t |
|
Maximum size specification of equipment available for inspection |
520mm×464mm×176mm |
-
