High Power PCB X Ray Machine X Ray Sources Unicomp AX8300 For LED
Product Details
pcb x ray inspection
,pcb inspection equipment
,High Power PCB X Ray Machine

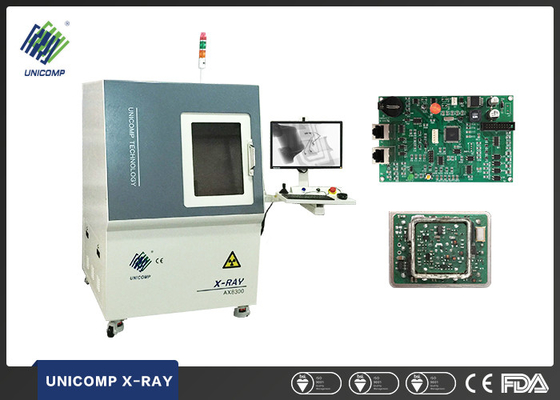

High power X ray sources PCB X Ray Machine Unicomp AX8300 for LED
X-ray inspection system has been widely applied to Circuit Board Inspection,Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, used for PCBA, packaging, ceramics, plastics, LED, and so on.
Major applications:
PCBA BGA/IC LED Aliminum die casting Battery connector inspecting
1. Semiconductor package
2. Electronic connector module.
3. Original Package
4. Aerospace components
5. Medical appliances
6. Automation components
Features:
110kV Microfocus x-ray source,
High resolution FPD
X/Y/Z/Tilt Motions (table, tube, FPD)
360° Table Rotation
Angle View up to 70 Degrees
Point and Click Location Navigation
CNC Programming for Multiple Image Inspection Routines
Max Inspection Area 360 x 340mm
|
Model |
AX8300 |
|
Max kV/type |
110 kV(Option90 kV)/Sealed |
|
Max.Electron beam power |
25W(Option8W) |
|
Focal spot size1 |
7μm |
|
System magnification |
Up to 1000X |
|
Imaging system(Option) |
Flat Panel Detector |
|
Manipulator |
8-axis with tilt 50 degree |
|
Measuring volume |
Max load area 300x300mm2 |
|
Max.sample weight |
5kg |
|
Monitors |
22" LCD |
|
Cabinet dimensions |
1100x1100x1650mm |
|
Weight |
1700kg |
|
Radiation safety2 |
<1μSv/hr(<0.1mR/hr)at the cabinet surface 5cm |
|
Control |
Keyboard/Mouse/Joystick |
|
Automated inspection |
Standard |
|
Primary applications |
Chip inspection/Electronic components/Auto parts.etc |
|
1.Focal spot size is a variable.Please consult the unicomp 2.X-ray Safety Commitment:All x-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems.The FDA-CDRH standard for cabinet x-ray systems states that radiation emissions will not exceed.5millirem/hr.2"from any external surface.Our machines are typically 15times less emission. |
|
