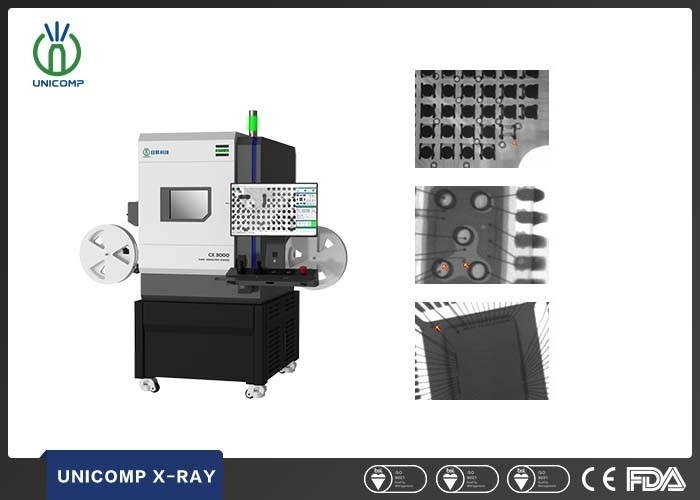

CX3000 Desktop Electronics PCB X Ray Machine for BGA and CSP inspection
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
CX3000
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T,L/C
Supply Ability:
30 sets per month
Product Summary
CX3000 Benchtop Electronics PCBA Unicomp X-ray Detection Equipment Item Definition Specs System Parameters Size 750(L)x570(W)x890(H)mm Weight 300kg Power 220AC/50Hz Power Consumption 0.5kW X-ray Tube Type Closed Max.Voltage 100kV Max.Power 200μA Spot Size 5μm Detector Intensifier FPD X-ray Coverage ...
Product Details
Highlight:
pcb inspection equipment
,pcb inspection system
,Desktop PCB X Ray Machine
Name:
X-ray Inspection Machine
Application:
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Type:
Desktop PCB X Ray Machine
X-Ray Leakage:
< 1uSv/h
Weight:
300kg
Power Consumption:
0.5kW
Product Description
CX3000 Benchtop Electronics PCBA Unicomp X-ray Detection Equipment
| Item | Definition | Specs |
| System Parameters | Size | 750(L)x570(W)x890(H)mm |
| Weight | 300kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kV | |
| Max.Power | 200μA | |
| Spot Size | 5μm | |
| Detector | Intensifier | FPD |
| X-ray Coverage | 48mm x 54mm | |
| Resolution | 208Lp/cm | |
| Work Station | Max.Loading Size | 200mm x 200mm |
| Max.Inspection Area | 200mm x 200mm | |
| Oblique Angle Views | 360° rotary fixture (Optional) | |
| X-ray Leakage | <1μSv/h | |
Installation
Unicomp will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site radiation survey at the time of installation with supporting documents.
Training
Training will include:
Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.
Inspection Images:
