Real Time Image PCB X Ray Machine , Electronic Inspection Equipment AX8500
Product Details
pcb inspection equipment
,pcb inspection system
,Electronics Industry PCB X Ray Machine

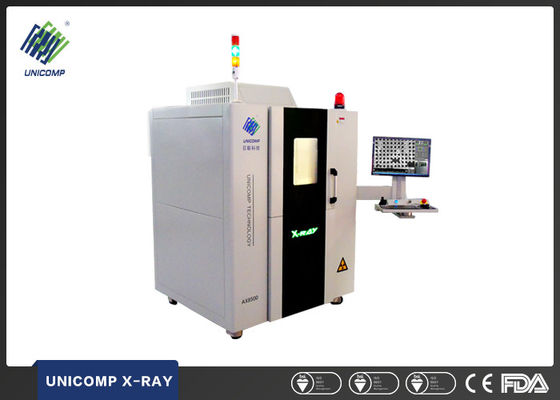

Electronic and electrical components PCB X Ray Machine AX8500
The AX8500 X Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.
| Item | Definition | Specs |
| Motion Control System | Motion Control Mode | Mouse&Joystick&Keyboard |
| Max.Load Dimension | 500x500mm | |
| Max.Detection Dimension | 350x450mm | |
| Tilt Detection Angle | 60° | |
| X-Ray System | Tube Type | Closed |
| Voltage/Current | 100kv/200μA | |
| Focal Spot Size | 5μm | |
| FPD Detector | FPD | |
| Physical & Image Processing Parameters | Length x Width x Height | 1250 x 1300 x 1900 mm |
| Weight | 1500 kg | |
| Power | 2kW | |
| System Magnification | 500 x | |
| Leakage Dose | <1μSv/h |
Features:
● 100KV 5μm X-Ray tube.
● FPD Detector.
● Real-time image.
● 1000X system magnification.
● 6 axis linkage system.
● X-ray tube and FPD simultaneously tilt ±35°.
● Modular design with In-line expansibility.
● Economical and Practical.
Applications:
● LED,SMT,BGA,CSP,Flip Chip Inspection.
● Semiconductor,Packaging components,Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die Casting, Moulding Plastic.
● Ceramics, Other Special Industries.
Inspection Images:
-
Pgood product
-
SStable product quality , reliable cooperation partner
-
IC Curvature Measurement Unicomp AX9100MAX X-Ray Machine with 84μm Pixel Size and 60° Tilting Angle
