BGA X Ray Inspection Machine Smt X Ray Machine with high quality
Product Details
bga inspection equipment
,bga x ray machine

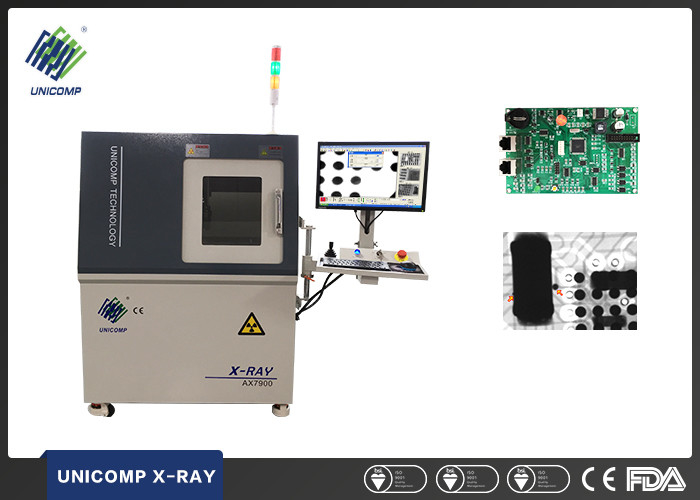

BGA X Ray Inspection Machine Smt X Ray Machine with high quality
Unicomp X-Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.
| Item | Definition | Specs |
| System Parameters | Size | 1215(L)x1325(W)x1700(H)mm |
| Weight | 1240kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.8kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 90kV | |
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 24 ‘’LCD | |
| Geometric Magnification | 52X | |
| Detection Region | Max.Loading Size | 600mm x 520mm |
| Max.Inspection Area | 505mm x 440mm | |
| X-ray Leakage | <1μSv/h | |
X-ray inspection system has been widely applied to Circuit Board Inspection,Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, used for PCBA, packaging, ceramics, plastics, LED, and so on.
Major applications:
PCBA BGA/IC LED Aliminum die casting Battery connector inspecting
1. Semiconductor package
2. Electronic connector module.
3. Original Package
4. Aerospace components
5. Medical appliances
6. Automation components
NC Programming
1.A simple mouse clicks operation write test procedures
2.The stage can be X, Y director positioning; X-ray tube and detector Z positioning.
3.Software setting voltage and current
4.Image settings: brightness, contrast, auto gain and exposure
5.The user can set the program switch pause time
6.Anti-collision system can meet the maximum tilt and observe objects
Inspection Images:
-
