Real Time X Ray Machine 60mm Penetration
Product Details
real time x ray machine
,real time x ray system

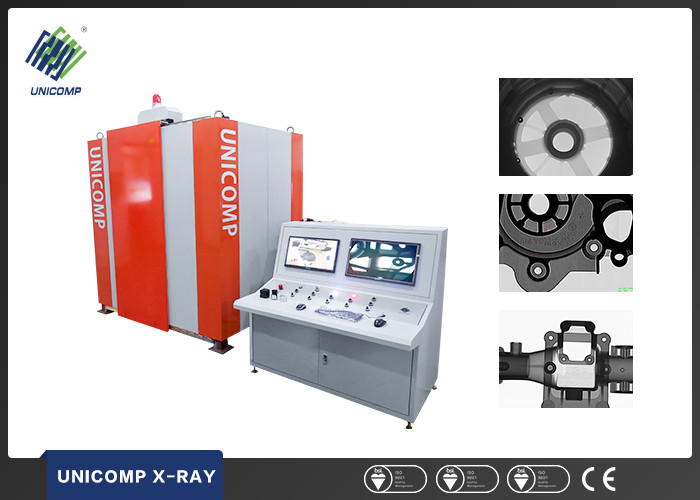

Iron 60mm Penetration Versatile Adaptive High Power X-ray Inspection Detector
The UNC450 is specifically designed for castings and other large and heavy products. The system features a programmable C-arm manipulator for automated and repeatable inspection sequences. The massive access door and external indexing rotational stage make loading quick and easy.
SYSTEM CAPABILITIES
Advanced 2D X-ray inspection
Overall Maximum System Resolution: ~5 microns
80cm diameter x 80cmtall nominal part envelope
Comprehensive acquisition, processing and archival program with user-friendly interface
High performance image processing and measurement functions
Non-proprietary multiple image format
X-RAY SOURCE
Micro-focus X-ray tube
Voltage Range: 320 kV
Minimum Focal Spot Size: ~5 microns
X-RAY DETECTOR
Digital X-ray detector types: Flat Panel
Grade Options: Standard, Premium,
Detector Size: up to 50 cm x 80 cm
MANIPULATOR
Maximum Sample Weight: 150kg
CABINET
External Dimension: 2423mm*2294mm*2586mm(L*W*H)
Cabinet Features: interior lighting, sliding access door, leaded glass viewing window
Exact specifications vary depending on tube, detector, and other optional configurations.
Basic functions:
X-ray protection cabinet which prevents
X-rays penetration beyond the system
Sliding door with interlock and observation window
Tilting table with adjustable height
X-ray detector: flat panel detector, linear photodiode array, image tube
Auto centering
-
