FPD Detector Bga X Ray Inspection System for Multi - Functional Workstation
Product Details
bga x ray inspection system
,bga x ray machine
BGA X Ray Inspection Machine high-quality PCB inspection system
X-ray detection technology for the SMT production testing means brought new changes, it can be said that it is the desire to further improve the level of production technology to improve the quality of production, and will soon find the circuit assembly failure as a breakthrough. It's the best selection for the manufacturer.
Installation
Unicomp will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site radiation survey at the time of installation with supporting documents.

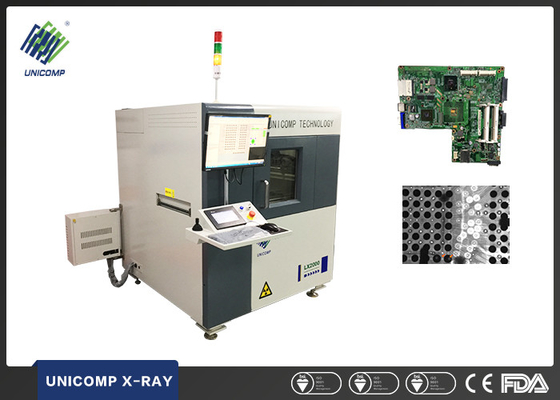

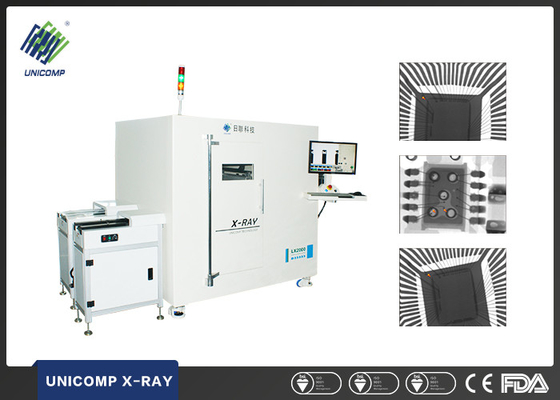

The LX-2000 is a versatile OnLine X-ray Machine designed for automated and semi-automated analysis. In addition to the OnLine capability, the LX-2000 can also be used in a Manual mode as a process monitoring/engineering workstation.
High resolution x-ray images are generated using a closed microfocus 130kV tube with leading edge FPD (Flat Panel Display) detectors. This imaging chain combination is excellent for multiple applications including; PCBA, Semiconductor, Encapsulated Components, and Solar Cell just to name a few.
| Item | Definition | Specs |
| System Parameters | Size | 1385(L)x1400(W)x1620(H)mm |
| Weight | 2000kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 3.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 3μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 200 X | |
| Detection Region | Orbit Adjusting Range | 80-350mm |
| X-ray Leakage | <1μSv/h | |
| Control Mode | CNC Motion Mode | |
-
