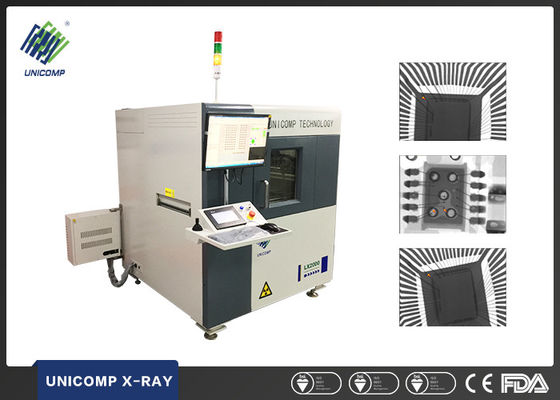

Electronic Components BGA X Ray Inspection Machine
Product Details
bga inspection equipment
,bga x ray machine
Online inspection system for Checking LED Semiconductor Electronic Components
The X-Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.
X-ray Inspecting Features:
(1) Coverage of process defects up to 97%. Inspectible defects include: Empty solder, Bridge, Solder
shortage, voids, components missing, and so on. In particular, the BGA, CSP and other solder joint
devices can also be checked by X-Ray.
(2) Higher test coverage. It can check where the naked eye and the online test can not be checked. Such
as PCBA was judged fault, suspected PCB inner trace break, X-ray can be quickly checked.
(3) The test preparation time is greatly reduced.
(4) It can observe other means of detection can not be reliably detected defects, such as: Empty
soldering, air holes and poor molding and so on.
(5) Double layers board and multi-layer boards only one check (with layered function).
(6) Can provide relevant measurement information, used to evaluate the production process. Such as
solder paste thickness, solder joints under the amount of solder.
Training
Training will include:
Basic Radiation Safety.
X-Ray system control functions.
X-Ray image processing software training.
Basic X-ray signature analysis training.
Hands-on sample analysis using your typical samples.
Training certificates for all attendees.
| Item | Definition | Specs |
| System Parameters | Size | 1385(L)x1400(W)x1620(H)mm |
| Weight | 2000kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 3.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 130kV | |
| Max.Power | 40W | |
| Spot Size | 3μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 22 ‘’LCD | |
| System Magnification | 200 X | |
| Detection Region | Orbit Adjusting Range | 80-350mm |
| X-ray Leakage | <1μSv/h | |
| Control Mode | CNC Motion Mode | |
-
IC Curvature Measurement Unicomp AX9100MAX X-Ray Machine with 84μm Pixel Size and 60° Tilting Angle
It is widely utilized in applications such as BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Modules, Cables, Photovoltaic Industry, and more. Application Fields Functions and Feature Inspection Image System Summary Footprint 1455(W)×1760(D)×1945(H)mm Machine Weight 2400 kg Power Supply AC 110~220V, 50/60Hz Packaging Dimension 1710(W)×1950(D)×1875(H)mm Packing Weight 2600 kg Power Consumption 4 kW X-Ray -
Fully Automatic Inline Electronics X Ray Machine LX2000 with CNC mapping
Fully Automatic Inline Electronics X Ray Machine LX2000 With CNC Mapping Unicomp Technology fully automatic Inline LX2000 AXI X-ray Inspection System with CNC mapping for IGBT Quality Control Technical Parameters and Specifications System Summary Footprint 2595(W)×1392(D)×1992(H)mm Machine Weight 1900 kg (X-Ray) / 700kg (Conveyor) Power Supply AC 110~220V, 50/60Hz Plywood Packing Size 180(W)×170(D)×190(H)cm (X-Ray) 150(W)×105(D)×120(H)cm (Conveyor) Packing Weight 2000kg (X -
UNX4015N X Ray Equipment Food Impurity Real Time Inline Detection
Food Impurity Real Time Inline Detection UNX4015N For Food-Packing Quality Inspection Application UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc. Features Easy to Operate: one button start&stop, optional default product Provide High precision automatic foreign -
Unicomp UMC160 NDT X-ray machine with robot handling for lithium battery aluminum casting housing weld defects flaws det
Unicomp UMC160 NDT X-ray machine with robot handling for lithium battery aluminum casting housing weld defects flaws detection Features: ● Strong penetration,high reliable,low breakdown, long life; ● High definition,resolution FPD; ● Multi-functional workstation,360°rotation and shift; ● High automation,fast detection speed; ● User friendly software design for interfacing and to facilitate,customize software function development requirement. Applications: ● Cast parts and
