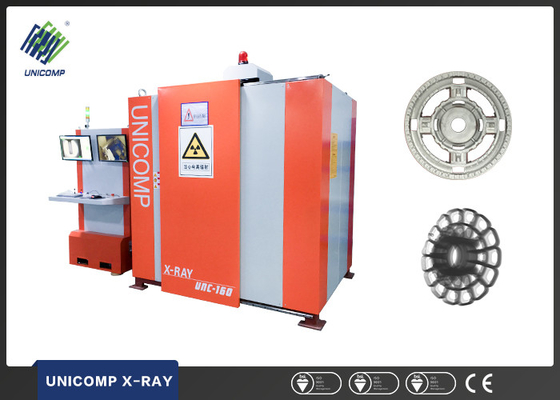

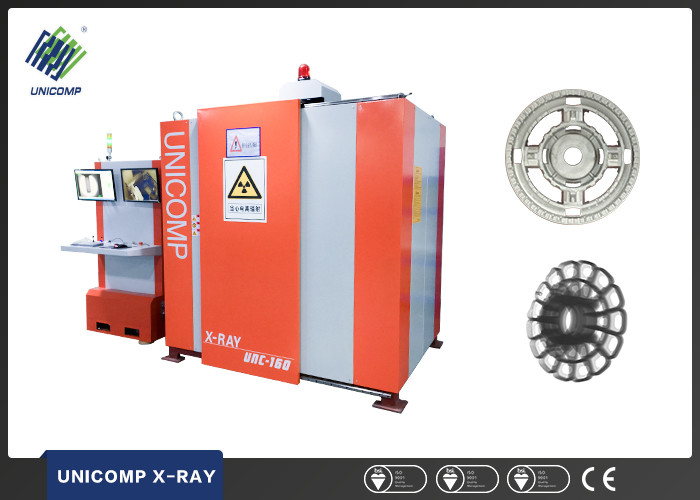

Metal Casting Part X Ray Cabinet System
Product Details
x ray imaging system
,digital x ray machine
Car Bus Metal Casting Part Inspection X-ray cabinet systems in UAE Singapore
Unicomp Technology UNC series X-ray real-time imaging testing equipment is a standardized industrial industry non-destructive testing equipment, Our company have a lot of experience about designing non-standard X-ray and the solution of testing technology program. Help customers about the manufacturing process, research, project development, on the test process to achieve test results, and then make sure product quality.
Optimized design and new ultrasharp monitor
Simplified, enhanced, and reliable X-ray inspections
Exceptional 2D image quality in the shortest time
User-friendly Software interface
Minimal system footprint for limited space
Applications:
●Cast parts and pressure Vessels
●Wheel,Tires and Metal parts
●Steel pipe,Cylinder and Wood
Technical Data
| Attribute | Respective Value |
| Maximum penetration(FE) | 100mm/20mm |
| Equipment weight | 3.5T |
| System Dimension | 2100mm*1550mm*2500mm(L*W*H) |
| X-ray Tube | 160KV |
| Detection range | Φ500*800mm |
| Pixel Pitch | 139μm |
| Focal size | 5μm |
| Image Area | 145mm x 145mm |
-
