High Efficient BGA X Ray Inspection Machine , Micro Focus X Ray Cabinet Systems
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
CX3000
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T,L/C
Supply Ability:
30 sets per month
Product Summary
Micro-focus x-ray cabinet systems BGA X-Ray Inspection Machine Item Definition Specs System Parameters Size 750(L)x570(W)x890(H)mm Weight 300kg Power 220AC/50Hz Power Consumption 0.5kW X-ray Tube Type Closed Max.Voltage 100kV Max.Power 200μA Spot Size 5μm Detector Intensifier FPD X-ray Coverage 48mm ...
Product Details
Highlight:
bga x ray inspection system
,bga inspection equipment
Name:
BGA X-Ray Inspection Machine
X-Ray Coverage:
48mm X 54mm
Industry:
Electronics Industry
Resolution:
208Lp/cm
X-Ray Leakage:
< 1uSv/h
Power Consumption:
0.5kW
Product Description

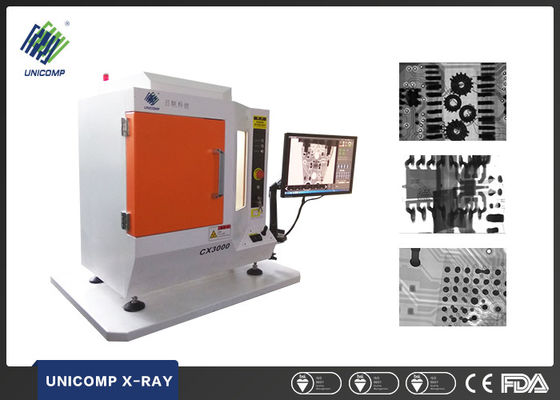

Micro-focus x-ray cabinet systems BGA X-Ray Inspection Machine
| Item | Definition | Specs |
| System Parameters | Size | 750(L)x570(W)x890(H)mm |
| Weight | 300kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 100kV | |
| Max.Power | 200μA | |
| Spot Size | 5μm | |
| Detector | Intensifier | FPD |
| X-ray Coverage | 48mm x 54mm | |
| Resolution | 208Lp/cm | |
| Work Station | Max.Loading Size | 200mm x 200mm |
| Max.Inspection Area | 200mm x 200mm | |
| Oblique Angle Views | 360° rotary fixture (Optional) | |
| X-ray Leakage | <1μSv/h | |
X-Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.
Application:
1.BGA/CSP/FLIPS CHIP:
Bridging ,Voids,Opens,Expcessive/insufficient
2.QFN:Bridging,Voids,Opens,Registration
3.SMT Standard components:
QFP,SOT,SOIC,Chips,Connectors,Others
4.Semiconductor:
bond wire,die attach VOID ,MOLD,VOID
5.Multi-layer board(MLB):
Inner layer registration,PAD stack,blind/buried vias
Inspection Images:
