Long Life BGA X Ray Inspection Machine , X Ray Imaging System 4"Image Intensifier
Product Details
bga x ray inspection system
,bga x ray machine

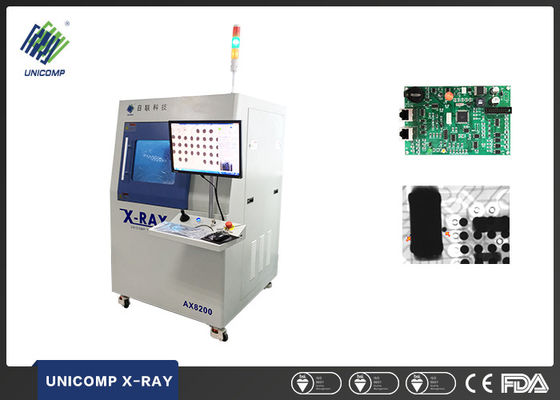

BGA electronic parts X-ray Inspection Machine with high quality X-ray images
Features:
● 100KV 5μm X-ray tube, image intensifier with 2 mega pixels CCD camera.
● Motion controls include: ±60° tilt motion, X/Y table motion plus Z axis tube and detector movement.
● Multi-function DXI image processing system
● X/Y programming function for multiple image inspection routines
● Max. loading area 510mm x 420mm, max. detection area 435 x 385mm with ~300X System Magnification.
Item | Definition | Specs |
System Parameters | Size | 1080(L)x1180(W)x1730(H)mm |
Weight | 1150kg | |
Power | 220AC/50Hz | |
Power Consumption | 0.8kW | |
X-ray Tube | Type | Closed |
Max.Voltage | 90kV/100kV | |
Max.Power | 8W | |
Spot Size | 5μm | |
X-ray System | Intensifier | 4"Image Intensifier |
Monitor | 22"LCD | |
System Magnification | 600x | |
Detection Region | Max.Loading Size | 510mm x 420mm |
Max.Inspection Area | 435mm x 385mm | |
X-ray Leakage | < 1uSv/h | |
Applications :
Multilayer PCBs
BGA, QFN, wire bond, etc
Semiconductor
Over molded electrical connectors
Encapsulated components
Aluminum die casting
Molded plastic
Automotive assemblies
Medical devices
Pharmaceuticals
Ceramics
Agriculture
Inspection Images:
-
