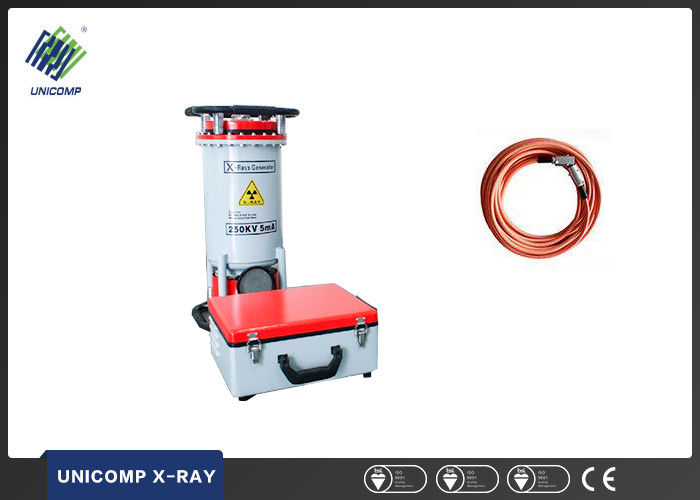

CE Weld X Ray Inspection Machine , Radiographic Weld Testing Equipment
Product Details
x ray generators
,x ray welding machine
,CE Weld X Ray Inspection Machine
NDT X Ray Wire Rope Flaw Detector Industrial welding inspection equipment
The product adopts the new structure, new materials and intermediate frequency technology, the high voltage transformer operating frequency up to intermediate frequency, maximum limit reduces the volume and weight of the X-ray generator, the maximum transmission capability of a product compared with the traditional frequency portable X-ray machine is improved by more than 20%, the tube voltage 50kV~250kV continuously adjustable, expanded the scope of testing, can detect 1mm~48mm steel plate, one machine is equal to more machine.
The product adopts the latest heat dissipation technology ,generator' heat quantity is low. The machine can work by mobile power supply (generator), wide adaptation range, improves the utilization rate of the product.
Applications:
Spaceflight Industry,
Shipbuilding Industry,
Metallurgy Industry,
Chemical Industry,
Power Supply,
Automobiles,
Directional Portable X-ray Detector (Ceramic X-ray tube)
| Model |
|
Power |
Focus Size |
Radiation Angle |
Max Penetrating Power |
Size |
Weight |
| XXG-1605 | 50-160 | 1.8 | 1.5×1.5 | 40°＋5° | 20 | 220*220*560 | 20 |
| XXG-2005 | 120-200 | 2.0 | 2.0×2.0 | 40°＋5° | 30 | 250*250*620 | 26 |
| XXG-2505 | 150-250 | 2.5 | 2.0×2.0 | 40°＋5° | 40 | 260*260*740 | 28 |
| XXG-3005 | 170-300 | 3.0 | 2.5×2.5 | 40°＋5° | 50 | 320*320*820 | 34 |
| XXG-3505 | 200-350 | 3.5 | 2.5×2.5 | 40°＋5° | 60 | 320*320*820 | 35 |
Panoramic portable X-ray Detector(Ceramic X-ray tube)
| Model |
|
Power |
Focus Size |
Radiation Angle |
Max Penetrating Power |
Size |
Weight |
| XXGH-1605P | 50-160 | 1.8 | 1.0 × 2.0 | 360°*25° | 18 | 220*220*560 | 20 |
| XXGH-1605Z | 50-160 | 1.8 | 1.0 × 3.5 | 360°*30° | 18 | 220*220*560 | 20 |
| XXGH-2005P | 120-200 | 2.0 | 1.0 × 2.0 | 360°*25° | 28 | 250*250*620 | 26 |
| XXGH-2005Z | 120-200 | 2.0 | 1.0 × 3.5 | 360°*30° | 25 | 250*250*620 | 26 |
| XXGH-2505P | 150-250 | 2.5 | 1.0 × 2.2 | 360°*25° | 35 | 260*260*740 | 28 |
| XXGH-2505Z | 150-250 | 2.5 | 1.0 × 5.0 | 360°*30° | 35 | 260*260*740 | 28 |
| XXGH-3005P | 170-300 | 3.0 | 1.0 × 2.5 | 360°*25° | 45 | 320*320*820 | 34 |
| XXGH-3005Z | 170-300 | 3.0 | 1.0 × 6.0 | 360°*30° | 45 | 320*320*820 | 34 |
| XXGH-3505P | 200-350 | 3.5 | 1.0 × 2.5 | 360°*25° | 55 | 320*320*820 | 35 |
| XXGH-3505Z | 200-350 | 3.5 | 1.0 × 6.0 | 360°*30° | 55 | 320*320*820 | 35 |
-
